BM-HMI UI

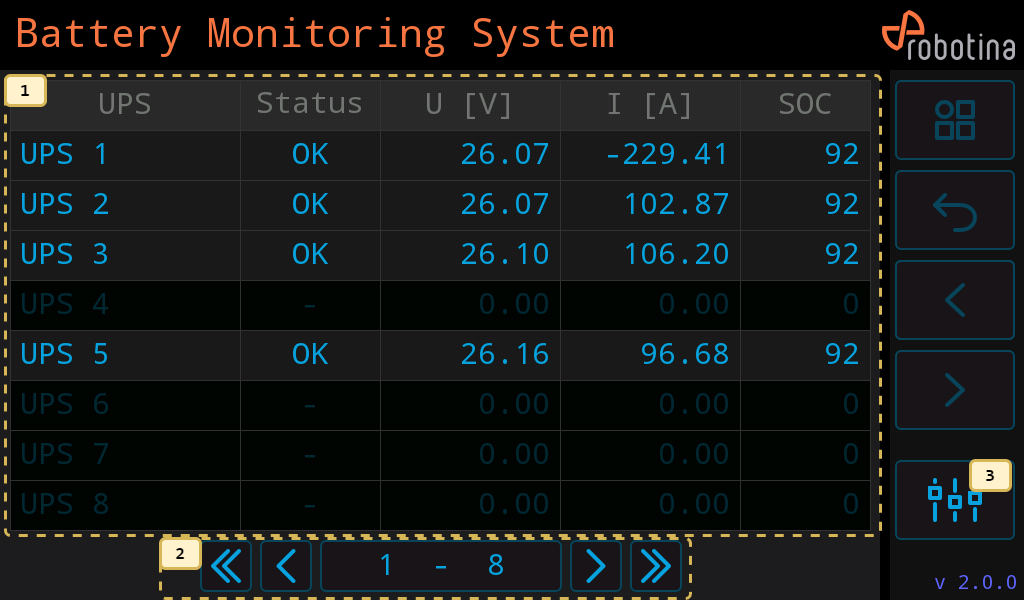

Main screen
| 1 | UPS data |
|---|---|
| - tap to display UPS details | |
| 2 | UPS navigation buttons |
| - first ups | |
| - previous 8 UPS | |
| - next 8 UPS | |
| - last 8 UPS | |
| 3 | Settings screen |

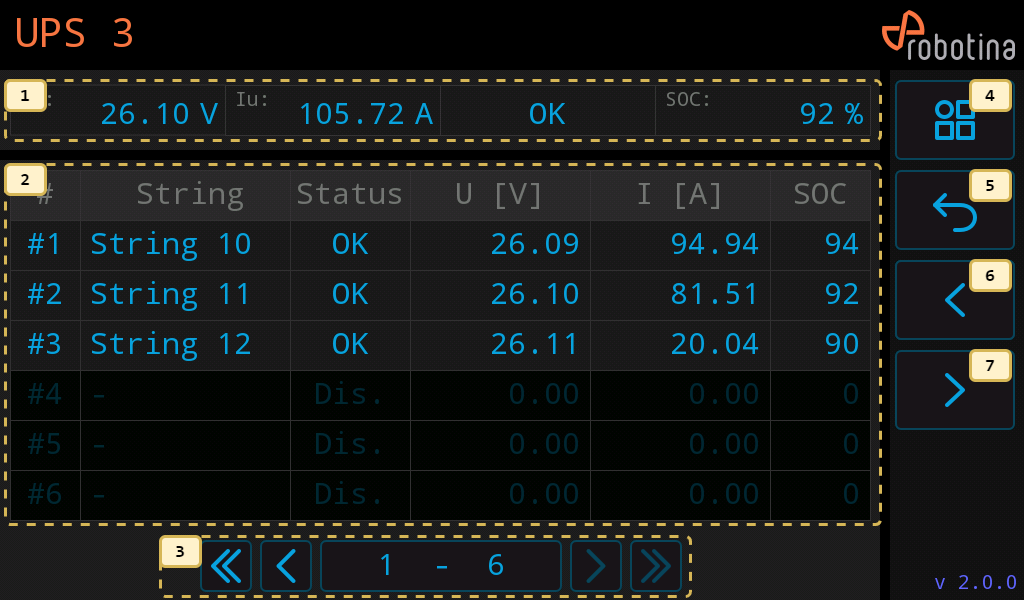

UPS screen
| 1 | UPS data |
|---|---|
| 2 | String data |
| - tap to display String details | |
| 3 | String navigation |
| 4 | Main screen |
| 5 | Previous screen |
| 6 | Previous UPS |
| 7 | Next UPS |

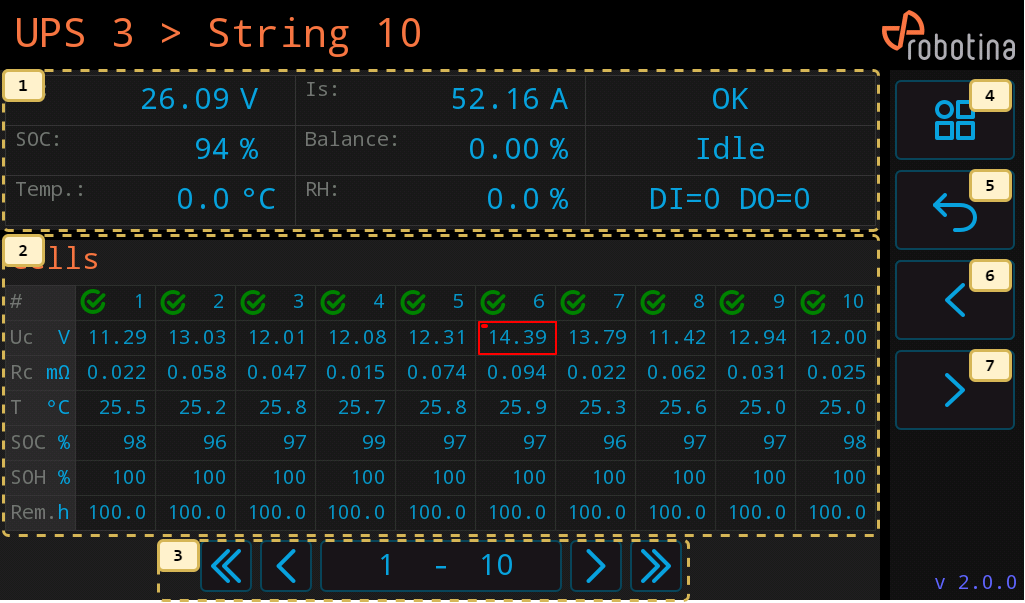

String screen
| 1 | String detailed data |
|---|---|
| 2 | Cells data |
| 3 | Cell navigation |
| 4 | Main screen |
| 5 | Previous screen |
| 6 | Previous String |
| 7 | Next String |

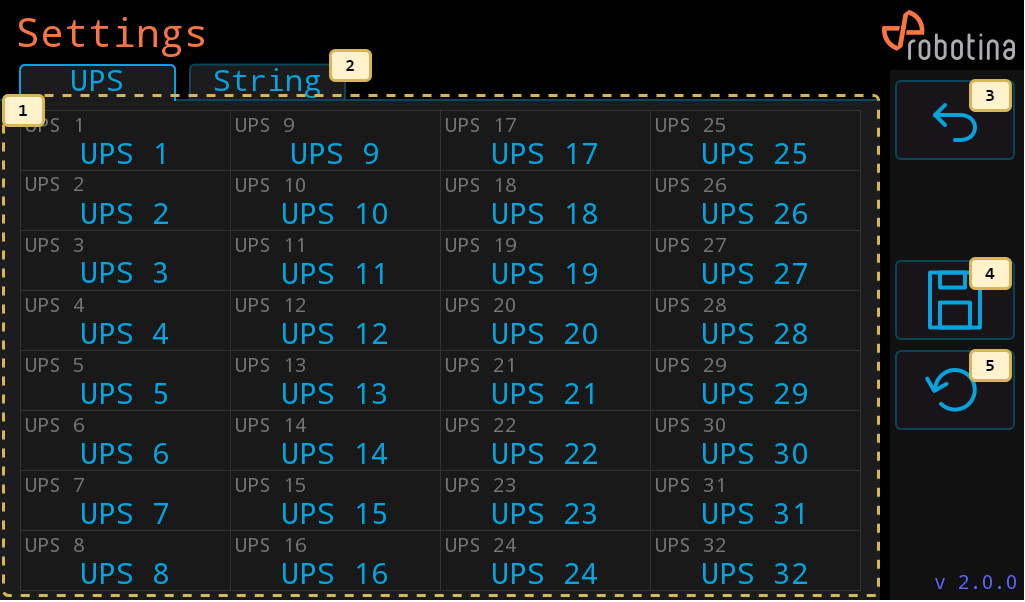

UPS names screen
| 1 | UPS names |
|---|---|
| - tap to edit name | |
| 2 | go to String names screen |
| 3 | Previous page |
| 4 | Save names to Flash memory |
| 5 | Restore default names |

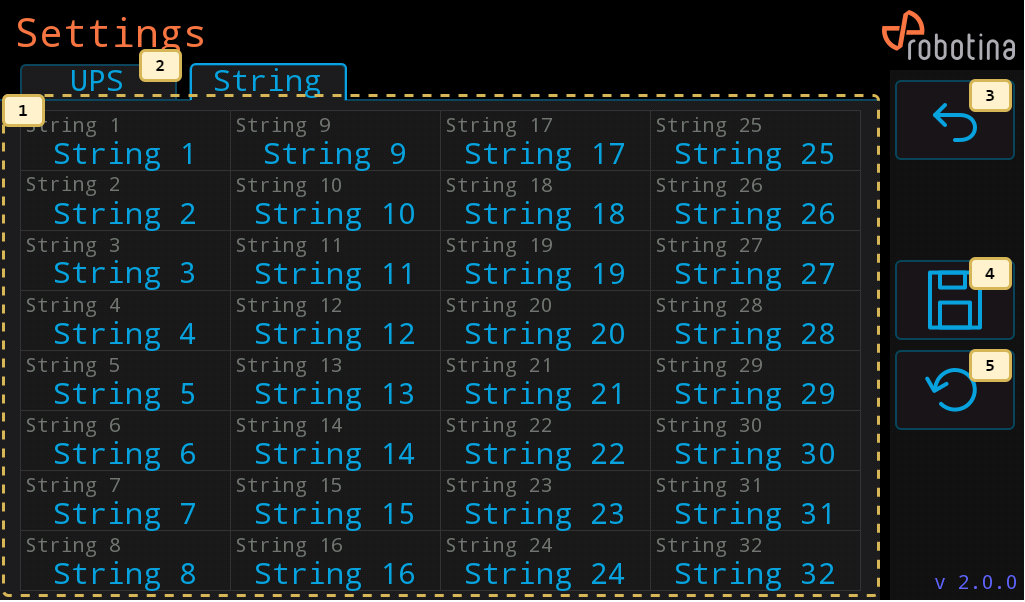

String names screen
| 1 | String names |
|---|---|
| - tap to edit name | |
| 2 | go to String names screen |
| 3 | Previous page |
| 4 | Save names to Flash memory |
| 5 | Restore default names |
