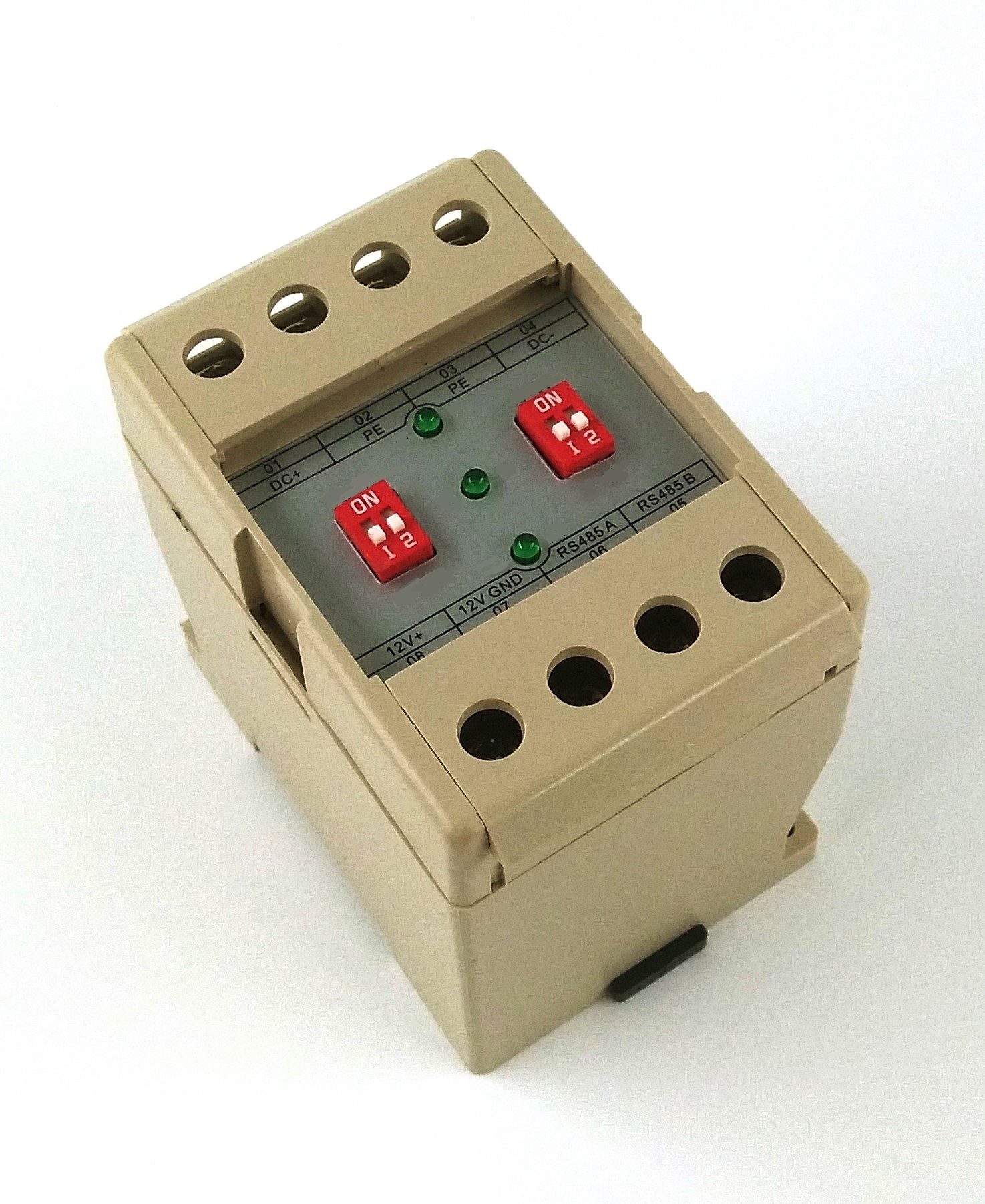

BM-GS
BTMS Insulation monitoring sensor
| Order code: | BM-GS |
|---|---|
| Mounting: | DIN rail |
Basic specifications
| Input voltage range | 150 .. 1000 VDC |
|---|---|
| Insulation measuring range | 1 kΩ .. 30 MΩ |
| Output | RS485 |
| Power supply | 9 .. 28VDC |

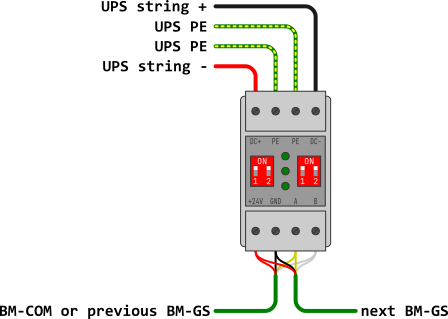

Wiring diagram
