PS-30-24
24V Power supply
Model number: | PS-30-24 |
---|---|
Mounting: | DIN rail, 35mm |
Dimensions: | 90mm x 54.5mm x 35mm |
Highlights & Features
- Ultra slim design with 35mm width
- No load power consumption <0.3W
- Isolation class II
- DC output voltage adjustable
- Over-voltage / Overload / Short circuit Protections
Safety standards
BS EN/EN61000-3-2, IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16
Technical specification
Input voltage range | 85 - 264 VAC |
Output voltage | 24 VDC |
Output current | 1.5 A |
Operating temperature | -30°C to +70°C |

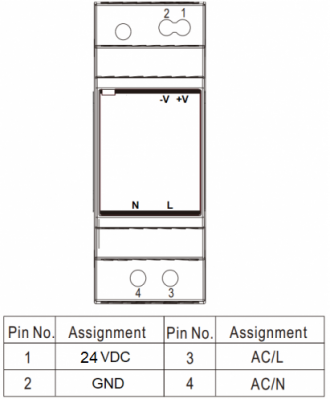

Terminals
Dimensions
