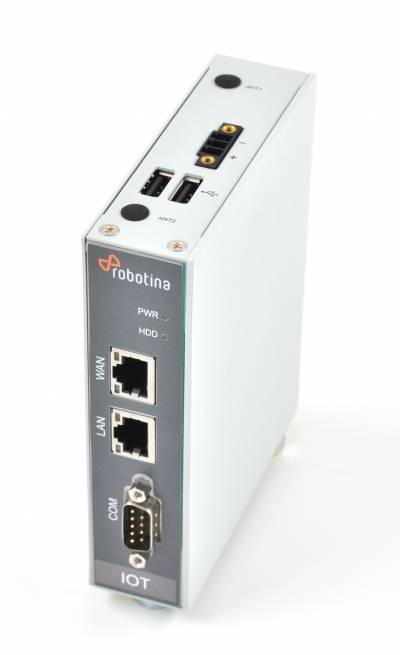

BM-GW
BTMS IOT Gateway
| Order code: | BM-GW-01 | NO GSM modem |
|---|---|---|
| BM-GW-02 | With GSM modem | |
| Mounting: | DIN rail, 31 mm | |
| Dimensions: | 31 × 125 × 100 mm | |
Highlights & Features
- Local WEB UI
- real-time data display
- data logging
- history data display (tables, time-plots)
- history and real-time data download
- e-mail, SMS alarming
- Robust and safe connection of BTMS system to BTMS cloud platform.
- Secure access and communication (TLS encryption)
- Local data buffer, no data loss
- User data safety according to GDPR
- Secure remote access to BM-C controllers
System specifications
- Up to:
- 32strings arbitrarily distributed on several UPSs
- 120 batteries / string (3840 batteries / system)
- Temperature and humidity sensor for each string
- Logging data for one year by automatically deleting old data
- Send e-mail and SMS alarms directly from the device
HW Technical specification
| Power supply: | 12 to 24 VDC, 1.39-0.72A | |
|---|---|---|
| Construction: | Extruded aluminum and heavy-duty steel, IP30 | |
| CPU: | Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W | |
| System Memory: | 1 x DDR3L-1866 SO-DIMM 4 GB | |
| Storage: | 128 GB SSD | |
| System I/O Outlet: | Serial 1 x DB9 RS-232/422/485 | |
| Display 1 x VGA | ||
| Ethernet 2 x RJ-45 isolated* 10/100/1000 Mbps | ||
| DIO 1 x DB9 8-bit programmable DIO | ||
| LTE Cat 4 Quectel EG25-G Mini PCIe | ||
| Working temp.: | -20°C to +70°C (-4°F to +158°F | |
| Humidity: | 0% to 95% | |
| Vibration Endurance: | 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating) | |
| Mounting: | DIN rail, wall | |
| Weight (net/gross): | 0.3 kg (0.67 lb)/0.45 kg (0.99 lb) | |
| Dimensions: | height | 125 mm |
| width | 31 mm | |
| depth | 100 mm | |
Wiring
