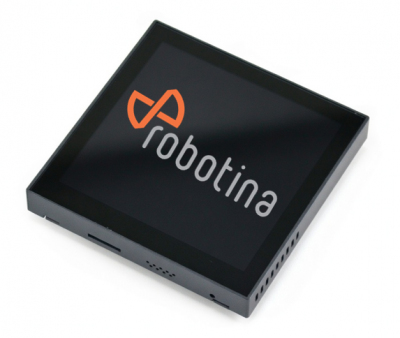

TGP-4D-01-IQ
Touch HMI, Black frame
| Model number: | TGP-4D-01-IQ |
|---|---|
| Mounting: | in-wall, UK dose or fi 60 flush box |
General description
TGP-4D-01-IQ is a 4-inch graphic panel with capacitive touch, designed for Cybro/HIQ building automation systems. It features a high-resolution TFT display, internal beeper, adjustable backlight brightness, and RS485 communication.
Features
- graphic panel 4“
- capacitive touch
- internal beeper
- dimmable background
- RS485 interface
- fully configurable
Technical specification
| Power supply: | 5-36V DC / 260 mA |
| Display: | TFT 4.0 inch |
| Resolution: | 480 × 480 |
| Brightness (cd/m²: | 250 |
| Contrast: | 800:1 |
| Colour: | 65K colour, 16-bit RGB |
| Active Area L x W : | 71.9mm x 70.2mm |
| Installation : | support rotation 0°/90°/180°/270° |
| Touch type : | capacitive |
| Communication : | RS485 (to MC Controller or Cybro) |
| Operating temperature : | -20°C to 70°C |
Terminals and Dimensions

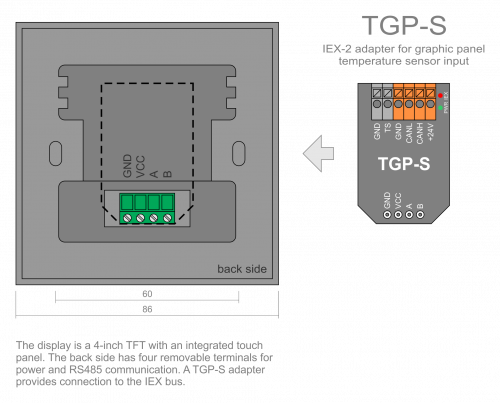

Back side of TGP-4D-01-IQ display:
- GND
- A (RS485)
- B (RS485)
- VCC (power input)
Connection via TGP-S adapter:
Adapter provides IEX bus (CANL/CANH), power distribution, and TS input for external temperature sensor (orange terminals)

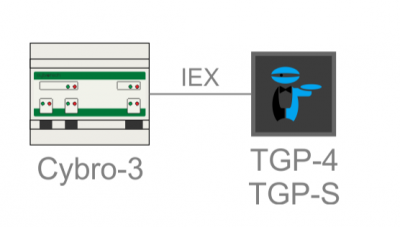

Connection methods
Mounting
Exclusively flush-mounted (recessed) installation in ø60 mm round flush junction box (fi 60 / circular in-wall box) or UK dose. Secured with two 3.5 mm screws. For basic RS485 communication and IEX-2 bus connection, the TGP-S adapter is not required – the device can connect directly to the controller. The TGP-S adapter is required only if an external temperature sensor is used (connected to the TS input on the adapter). The sensor is optional.
