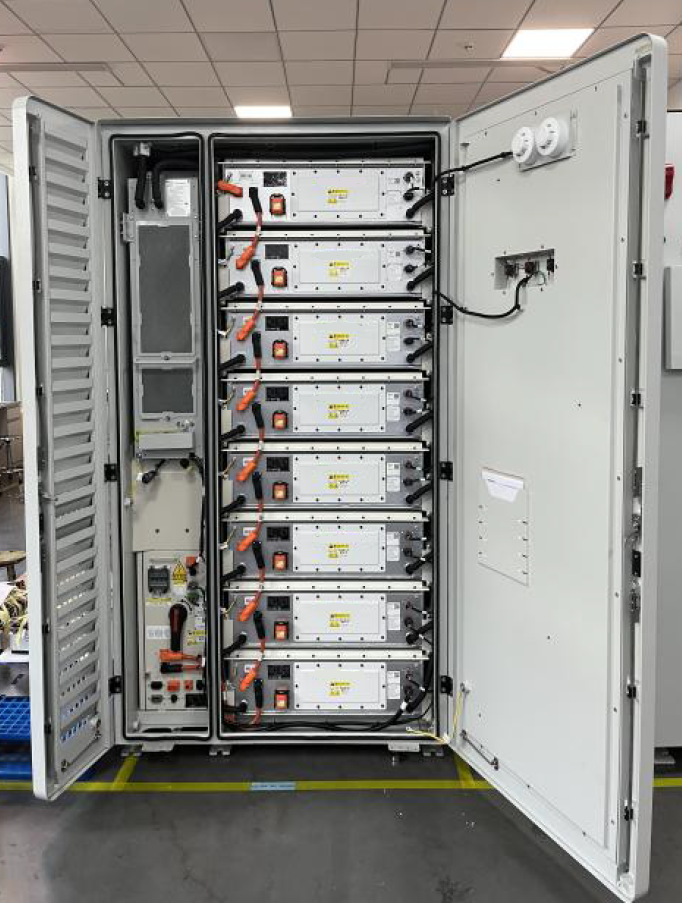

RBHV 1330-280-RA-O
LiFePO4 HV battery rack, outdoor, liquid cooled
| Order code: | RBHV 1330-280-RA-O | |
|---|---|---|
| Description: | High performance battery pack, IP54, liquid cooled | |
| Technology: | LiFePO4 | |
| Cell: | Grade A prismatic cell | |
| Cycles: | 10000 cycles with 80% DoD | |
| BMS: | High end BMS | |
| Compatiility: | xEMS, Deye-R, other inverters | |
Features
Industry grade ESS with high energy and power density, scalability and excellent performance. When integrated with Robotina xEMS, this LiFePO4 battery implements client's energy strategy.
Technical specification
| Nominal capacity: | 372.7kWh |
| Nominal voltage: | 1331.2V |
| End of discharge voltage: | 1164.8V |
| Charging voltage: | 1497.6V |
| Continuous Charge I: | 140A |
| Continuous Discharge I: | 140A |
| Peak Charge/Discharge I: | 280A (max 1min) |
| Internal impedance: | >10mOhm |
| Charge temperature: | 0..45°C |
| Discharge temperature: | -10..55°C |
| Parallel Connection: | up to 20 |
| Communication protocol: | CAN |
| Weight: | max 3500kg |
| Dimensions (WxHxD): | 1300x1300x2340mm |
| Installation method: | floor-standing |
| Environment: | Outdoor |
| Thermal management: | Liquid cooling/heating |
