BA-G4-01-F

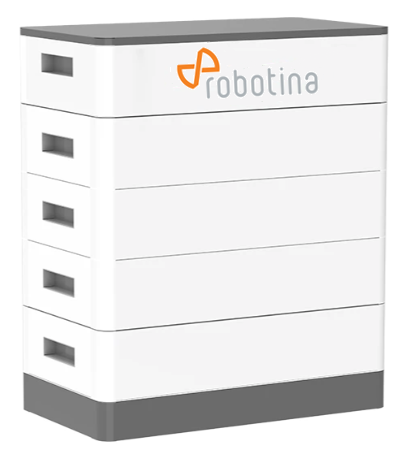

LiFePO4 High Voltage Freestanding (modular battery)
| Order code: | BA-G4-01-F | |
|---|---|---|
| Description: | High voltage freestanding battery | |
| Technology: | LiFePO4 | |
| Cell: | Grade A prismatic cell | |
| Cycles: | Over 6500 cycles with 80% DoD | |
| BMS: | High end BMS | |
| Compatiility: | xEMS, Deye-R, other inverters | |
| Mounting: | Freestanding | |
Features
ESS with high energy and power density, scalability and excellent performance. When integrated with Robotina xEMS, this LiFePO4 battery implements client's energy strategy.
Technical specification
| Nominal capacity: | 15.36kWh |
| Nominal voltage: | 204.8V |
| Battery Type: | LFP(LiFePO4) |
| Nominal Working Current: | 50A |
| Peak Charge/Discharge Current: | 65A |
| Charge temperature: | 0…45°C |
| Discharge temperature: | -10..50°C |
| Discharge Rate of Module | ≤3.5%/month/@25°C |
| MBS communication: | CAN/S485 |
| Ingress protection: | IP55 |
| Parallel Connection: | UP TO 10 |
| Weight: | 145kg |
| Dimensions (WxHxD): | 680x380x895mm |
