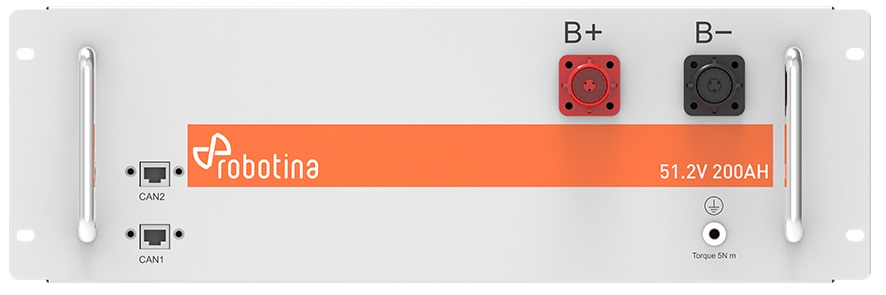

RB 512-200-R
LiFePO4 Battery rack module
| Order code: | RB 512-200-R | |
|---|---|---|
| Description: | High performance battery module for rack | |
| Technology: | LiFePO4 | |
| Cell: | Grade A prismatic cell | |
| Cycles: | Over 6500 cycles with 80% DoD | |
| BMS: | High end BMS | |
| Compatiility: | xEMS, Deye-R, other inverters | |
| Mounting: | Rack | |
Features
Industry grade ESS with high energy and power density, scalability and excellent performance. When integrated with Robotina xEMS, this LiFePO4 battery implements client's energy strategy.
Technical specification
| Nominal capacity: | 200Ah |
| Nominal voltage: | 51.2V |
| End of discharge voltage: | 46V |
| Charging voltage: | 56V |
| Continuous Charge I : | 100A |
| Continuous Discharge I: | 100A |
| Peak Charge/Discharge I: | 200A |
| Charge temperature: | 0…45°C |
| Discharge temperature: | -10..50°C |
| Parallel Connection: | up to 20 |
| MBS communication: | CAN/S485 |
| Weight: | 42.5kg |
| Dimensions (WxHxD): | 430x520x132.5mm |
| Certification: | CB-IEC62619, CE-EMC, MSDS, UN38.3 |
Certificate
