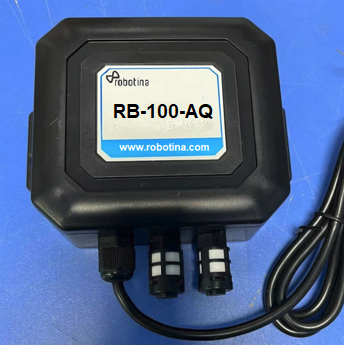

RB-100-AQ
Temperature, humidity and CO2 on wall sensor RS485
| Model number: | RB-100-AQ |
|---|---|
| Mounting: | In-wall, dose |
| Dimensions: | 100 x 122 x 44 mm |
| Connection: | RS485 to HIQ MC controller or Cybro |
| Frame color: | Black |
Features
- High measurement accuracy
- Built-in high-performance microprocessor
- Multiple probes available
- Integrated use of temperature, humidity and CO2
- Superior performance and long-term stability
Technical specifications
| Power supply: | 10-30VDC Note: 0-10VDC output (limited to 24VDC Power Supply) |
| Signal output: | 4-20mA/0-5VDC/0-10VDC RS485 output (Modbus protocol) |
| Digital output: | Device address 1-255, default 1 |
| Device baud rate 2400, 4800, 9600 optional, default 4800 | |
| Byte format 8-bit data bit, 1 stop bit, no parity | |
| Measuring temperature | -20°C to +80°C |
| Measuring humidity : | Relative humidity 0%-100% RH |
| Temperature accuracy : | 0.5°C (25°C) |
| Humidity accuracy : | 3% RH (20%RH-80%RH, 25°C) |
| Recommended work temperature : | 5°C - 55°C |
| Storage temperature : | 5°C - 30°C, 80%RH |
Wiring
Dimensions
