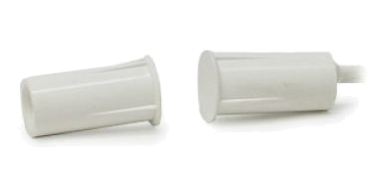

MOS-02
Opening sensor
Features
- Normally closed type: when the magnet is close to switch, the contacts are closed.
- Sensor is a reed switch, operated by an applied magnetic field.
- Designed for use with HIQ systems.
Specifications
| Type: | Magnetic Opening Sensor |
| Model: | MOS-02 |
| Material: | ABS |
| Color: | White |
| Size: | fi 8.5 x 20mm |
| MAX voltage: | 60V AC/DC |
| Rated current: | 100mA |
| Rated power: | 3W |
| Connecting mode: | NC. (normally closed) |
