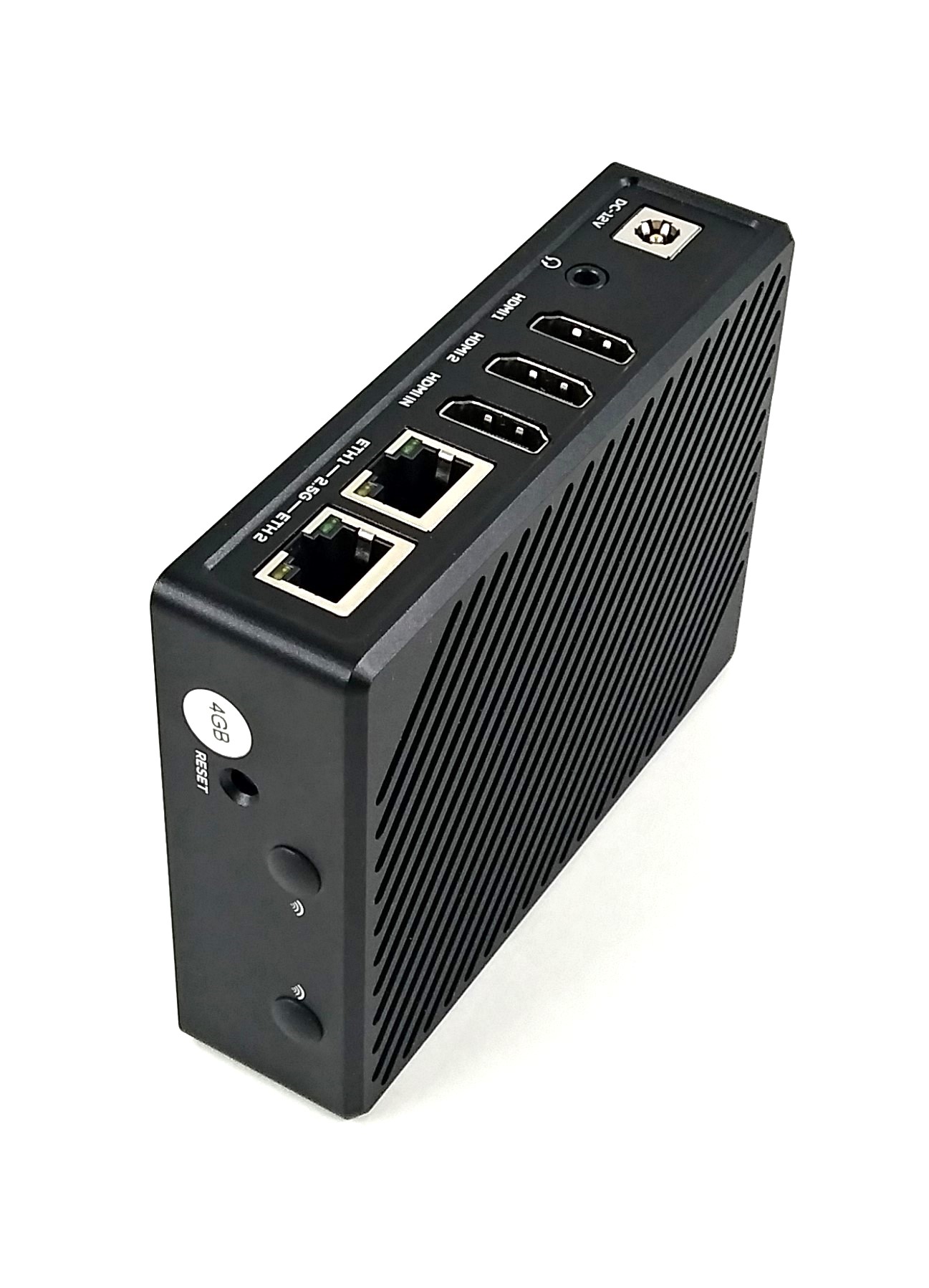

IOT-L3-PRO

Advanced EDGE device. Connects Cybro, MC Controller and RDC Charger to HIQ universe. Octo-core CPU (4x Cortex A76, 4x Cortex A55) , 4GB RAM (8GB or 16GB optional), 2x Ethernet, 1 USB, 12V Power Supply

*Power supply for IOT linker is offered separately

Order code	IOT-L3-PRO
Mounting:	DIN rail
Dimensions:	86 x 114 x 30 mm
Connection:	ETH1 Port: uplink to HIQ Universe; ETH2 Port: connects to Cybro, MC Controller or RDC Charger

Robust and safe connection of HIQ and 4S systems to HIQ Universe cloud platform.
Secure access and communication (TLS encryption)
User data safety according to GDPR
Secure remote access to HIQ controllers and chargers

Technical specifications

Power supply:	12V DC (Barrel Connector 5.5mm x 2.1mm)
Storage:	0GB/32GB/64GB/256GB eMMC, NVME M.2 2280 SSD up to 2500 MB/s
USB Host:	1 x USB 3.0 Type A, 1 x USB-C: Full function USB Type-C
Network:	ePCIe 2.5Gbps Ethernet x2, PCle 2.1 x 1 and USB2.0 Host support for M.2 WiFi and Bluetooth Module
Working temp.:	0℃ to 70℃
4G connection :	MiniPCIe modem card, SIM Card slot on board
