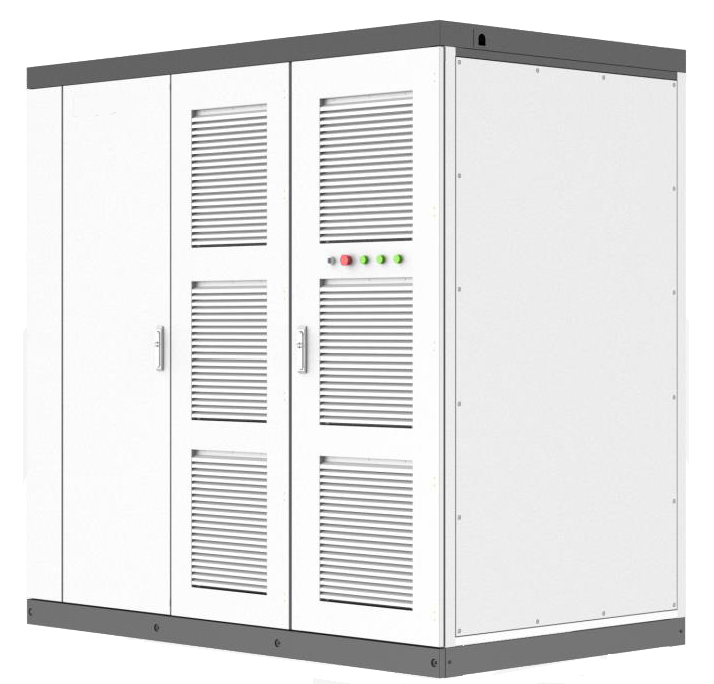

HV-1075-3P-01
| Order code: | HV-1075-3P-01 | |
|---|---|---|
| Description: | High voltage battery inverter-three phase | |
| Mounting: | standing-outdoor IP54 | |
Technical specification
AC Parameters
| Nominal AC power (kVA): | 1075 |
| Ac connection : | Three-phase |
| Overload capability: | 100%-110% max 2min |
| AC frequency and voltage: | 50/60Hz; 690V |
DC Parameters
| Max DC power (kW): | 1185 |
| DC voltage range (V): | 1000-1500 |
| Full load voltage range (V): | 1070-1500 |
| Number of DC branches: | 1 |
| Max DC current every branch: | 1005A |
System parameters
| Peak efficiency: | 98.5% |
| Dimensions (WxHxD): | 2000x2160x1300 mm |
| Weight: | 1900kg |
| Enclosure protection: | IP54 |
| Noise: | <75dB |
| Operating temp.: | -20℃ to 60℃ (De-rating over 50℃ |
| Cooling: | Air cooling |
