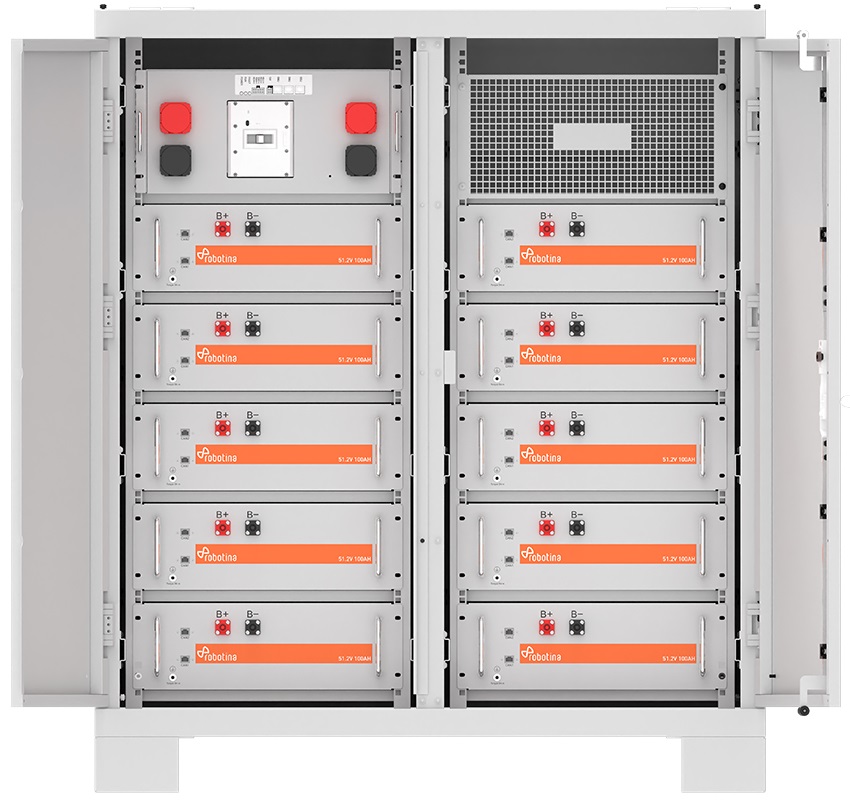

eSTORE 512-1000-50-O
LiFePO4 HV battery rack + 50kW HV inverter
| Order code: | eSTORE 512-1000-50-O | |
|---|---|---|
| Order code HV inverter: | HV-50-3P-01 | |
| Description: | High performance battery pack | |
| Technology: | LiFePO4 | |
| Cell: | Grade A prismatic cell | |
| Cycles: | Over 6500 cycles with 80% DoD | |
| Rack batteries: | RB 512-100-R | |
| BMS: | High end BMS | |
| EMS compatibility: | Robotina xEMS, Modbus | |
Features
Industry grade ESS with high energy and power density, scalability and excellent performance. When integrated with Robotina xEMS, this LiFePO4 battery implements client's energy strategy.
Technical specification for battery
| Nominal capacity: | 51.2kWh |
| Nominal voltage: | 512V |
| End of discharge voltage: | 440V |
| Charging voltage: | 584V |
| Continuous Charge I: | 100A |
| Continuous Discharge I: | 100A |
| Peak Charge/Discharge I: | 150A |
| Internal impedance: | >10mOhm |
| Charge temperature: | 0..45°C |
| Discharge temperature: | -10..50°C |
| Parallel Connection: | up to 10 (more option) |
| MBS communication: | CAN/S485 |
| Self discharge: | <2.5%/Mo |
| Weight: | 700kg |
| Dimensions (WxHxD): | 700x2250x700mm |
| Installation method: | floor-standing |
| Environment: | Outdoor IP54 |
| Air conditioning: | 1.5 kW, DC power |
Technical specification for inverter
AC output data
| Rated output power of AC and UPS (W): | 50000 |
| Rated AC Input/Output current（A) : | 75.8/72.5 |
| Max AC Input/Output current（A）: | 83.4/79.8 |
| Output frequency and voltage: | 50/60Hz; 230Vac/400Vac (3 phases) |
PV input data
| Max DC input power (W): | 65000 |
| PV input voltage (V): | 1000 |
| Starting voltage (V): | 180 |
| PV input current (A): | 36+36+36+36 |
Connected battery input data
| Battery voltage range (V): | 160-800 |
| Max charging current (A): | 50 |
| Max discharging current (A): | 50 |
General technical data
| Working temperature (℃): | -40 ~ 60 |
| Communication with BMS: | RS485, CAN |
| Weight (kg): | 80 |
| Degree of protection (IP): | IP65 |
Dimensions
