WD-1
Wireless DALI-to-DALI bridge
| Model number: | WD-1 |
|---|
Features
- wireless DALI-to-DALI bridge
- replacement for DALI wiring
- wired/wireless combinations
- multiple ballasts per bridge
- internal DALI power supply
- very long range, no hopping
- protected private connection
- multiple addressable groups
Technical specification
DALI
| DALI power supply: | internal, 18V 20mA |
| Ballasts per adapter: | 5 (2mA) or 10 (1mA) |
| Bus length: | 50m max. |
| Galvanic isolation: | 4kV DALI to mains (SELV) |
| 230V tolerance: | no |
Radio
| Frequency band: | 868MHz (EU), 915MHz (US) |
| Modulation | FSK, 80kHz bandwidth |
| Group address | 32-bit, automatically generated |
| Connection time | 10s power-on to network ready |
| Output power | 25mW |
| Minimum distance | 3m between devices |
| Operating range | 300m with optical visibility |
General
| Power supply | 230V, 50..60Hz, 2W |
| Terminals | 0.25..1.5mm2 |
| Operating conditions | -20..+40°C, 0..85% rh nc |
| Storage temperature | -40..+85°C |
| Weight | 80g |
| Degree of protection | IP20 |
| Standards | EN60730-1, EN300-220-2 |

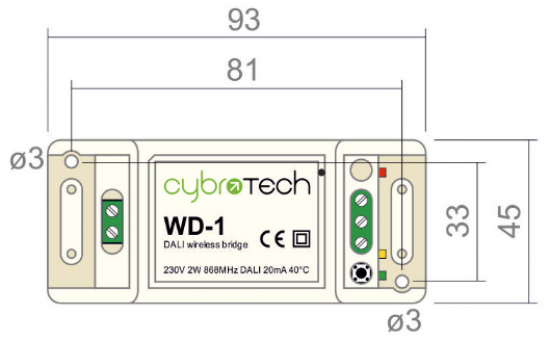

Dimensions and mounting
Device should not be installed inside the metal cabinet. Distance from antenna to the nearest object should be at least 10cm.

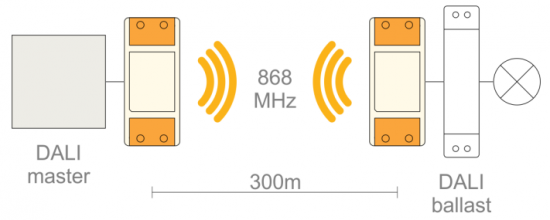

Operating range

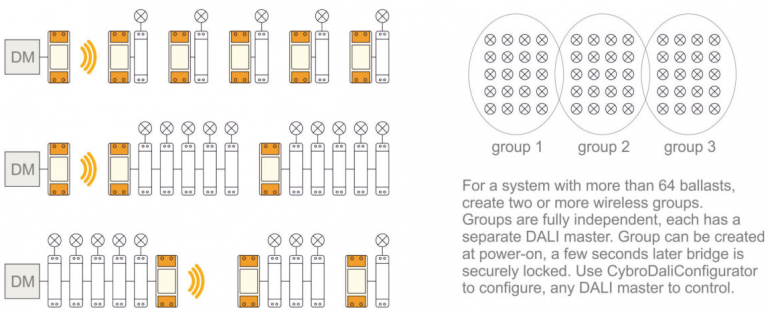

Groups

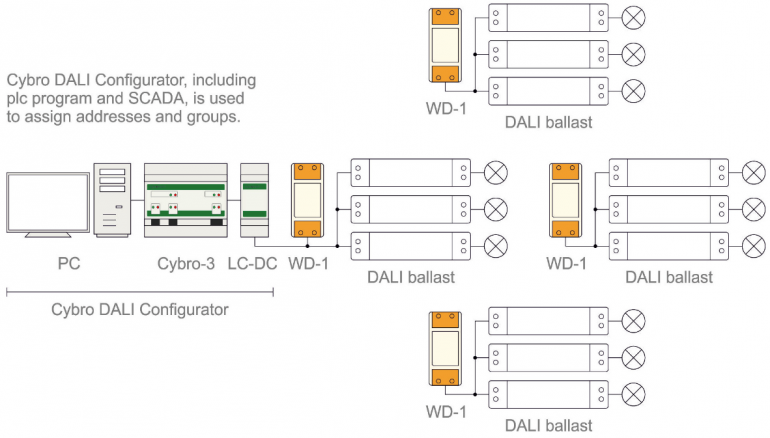

Configuration
