TS-S
temperature sensor, iBeacon transmitter, RS485 for gaphical touch display
| Model number: | TS-S |
|---|---|
| Mounting: | Field, on wall |
Features
- IEX-2 module
- temperature sensor
- iBeakon transmitter
- RS485 for touch display
Technical specification
| Temperature sensor | |
|---|---|
| Operating range | 0 °C to +50 °C |
| Measuring error | ±0.5°C typ. (0°C to +50°C) |
| Resolution | 0.1°C (12 bit) |
| Readout | 0.1°C (254 equals 25.4°C) |
| Beacon | |
| Bluetooth protocol | BLE 5.0 |
| Frequency band | 2.4GHz |
| Broadcast range | 5 |
| Advertising interval | 500ms |
| Local name | CYBRO |
| Touch display | |
| Protocol | page/event, IEX to serial |
| Interface | RS485, 115200bps 8n1 |
| Galvanic isolation | none |
| Cable length | 50m |
| General | |
| Power supply | 24V (18..28V), 50mA |
| Terminals | push-button cage clamp 3.5mm |
| Wire diameter | stranded 0.2..1.5mm2, solid to 1mm2 |
| Cable diameter | 8mm max. |
| Operating conditions | 0..50°C, 0..85% rh non-condensing |
| Storage temperature | -20..75°C |
| Degree of protection | IP20 |
| Dimensions | 80x80x25mm |
| Weight | 100g |

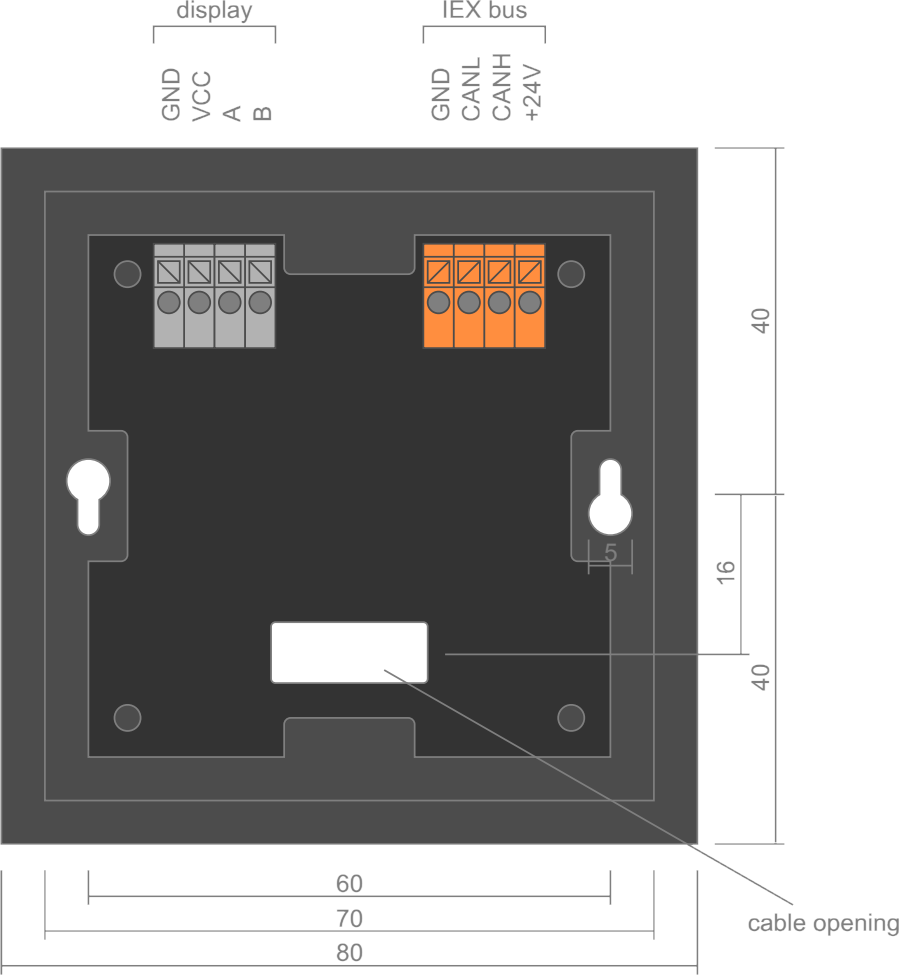

Dimensions & Mounting
