TGP Hotel app
Generic data
| CyBro → TGP: min/max setpoint | |
|---|---|
| page: | 2 |
| pp0 by0: | 1 |
| pp0 by1: | LO hvac_setpoint_min |
| pp1 by0: | HI hvac_setpoint_min |
| pp1 by1: | LO hvac_setpoint_max |
| pp2 by0: | HI hvac_setpoint_max |
| pp2 by1: | 0 |
| CyBro → TGP: room number | |
| page: | 2 |
| pp0 by0: | 2 |
| pp0 by1: | room_number[0] |
| pp1 by0: | room_number[1] |
| pp1 by1: | room_number[2] |
| pp2 by0: | room_number[3] |
| pp2 by1: | 0 |
| CyBro → TGP: language | |
| page: | 2 |
| pp0 by0: | 3 |
| pp0 by1: | tgp_language |
| pp1 by0: | 0 |
| pp1 by1: | 0 |
| pp2 by0: | 0 |
| pp2 by1: | 0 |
| CyBro → TGP: backlights | |
| page: | 2 |
| pp0 by0: | 4 |
| pp0 by1: | tgp_corridor_backlight_day |
| pp1 by0: | tgp_corridor_backlight_night |
| pp1 by1: | tgp_room_backlight_day |
| pp2 by0: | tgp_room_backlight_night |
| pp2 by1: | tgp_room_backlight_idle |
| CyBro → TGP: low light | |
| page: | 2 |
| pp0 by0: | 5 |
| pp0 by1: | low_light |
| pp1 by0: | 0 |
| pp1 by1: | 0 |
| pp2 by0: | 0 |
| pp2 by1: | 0 |
| CyBro → TGP: QR text (5 chars / message) | |
| page: | 2 |
| pp0 by0: | 6..25 (6 + i; i=[0..19]) |
| pp0 by1: | tgp_qr_txt[i*5+0] |
| pp1 by0: | tgp_qr_txt[i*5+1] |
| pp1 by1: | tgp_qr_txt[i*5+2] |
| pp2 by0: | tgp_qr_txt[i*5+3] |
| pp2 by1: | tgp_qr_txt[i*5+4] |
TGP Pages

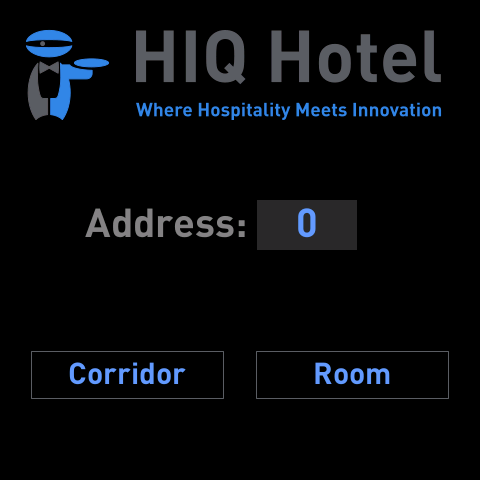

00.start
| CyBro → TGP | |
|---|---|
| page: | 0 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| / | |

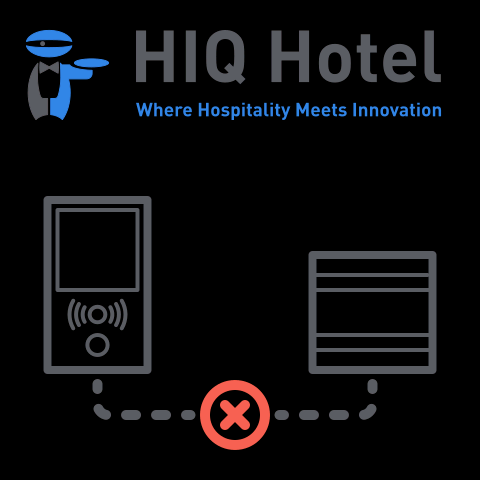

01.comm_time-out
| CyBro → TGP | |
|---|---|
| page: | 1 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| / | |

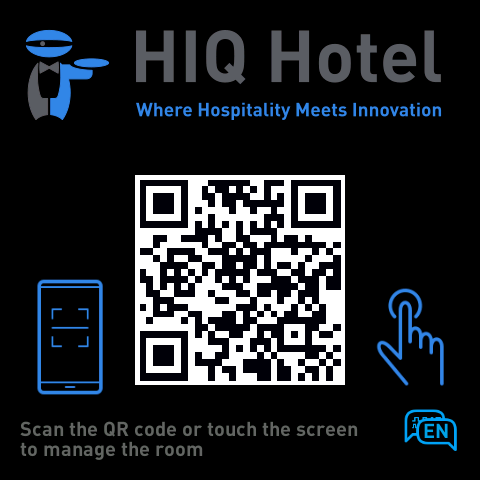

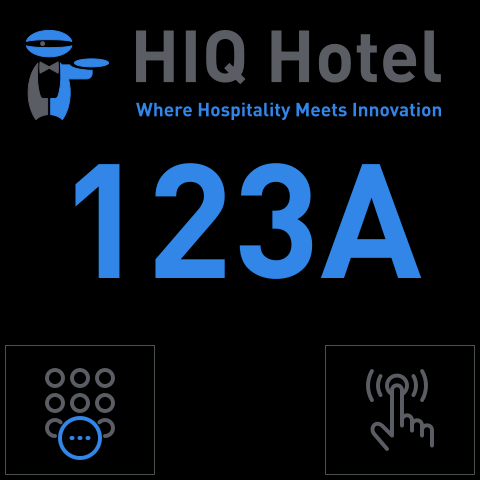

10.corridor_idle
| CyBro → TGP | |
|---|---|
| page: | 10 |
| pp0 by0: | room_number[0] |
| pp0 by1: | room_number[1] |
| pp1 by0: | room_number[2] |
| pp1 by1: | room_number[3] |
| pp2 ni0: | doorbell_status (0=disabled, 1-idle, 2=doorbell, 3=denied) |
| pp2 ni1: | dnd |
| pp2 ni2: | mur |
| pp2 ni3: | tgp_reader_type (0=none, 1=keypad, 2=QR, 3=RFID) |
| TGP → CyBro | |
| event: | 10 |
| ep0: | 1 |
| ep1: | doorbell_request |
| ep2: | / |

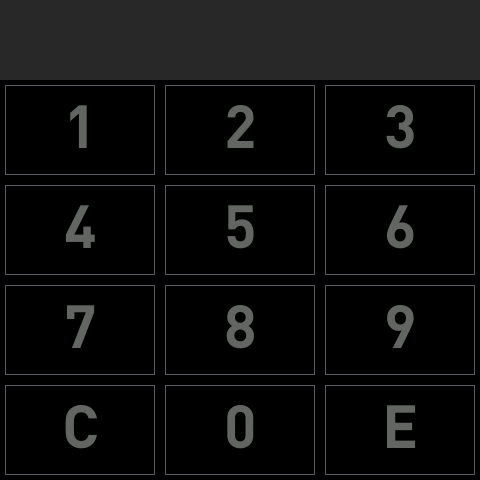

11.corridor_keypad
| CyBro → TGP | |
|---|---|
| page: | 1 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| event: | 11 |
| ep0: | 1 |
| ep2, ep1: | access_code_read |

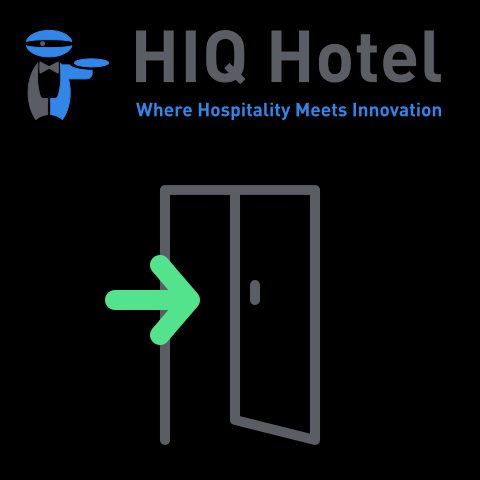

12.access_granted
| CyBro → TGP | |
|---|---|
| page: | 12 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| / | |

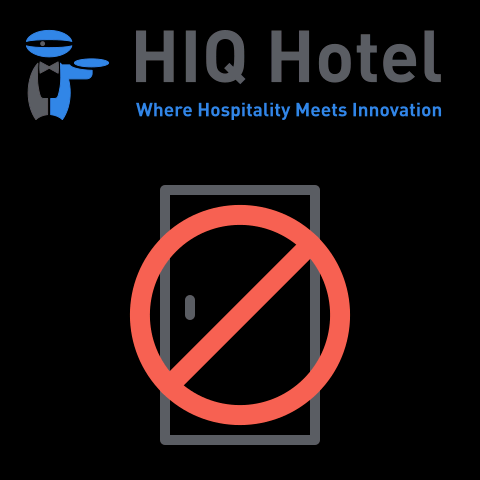

13.access_denied
| CyBro → TGP | |
|---|---|
| page: | 13 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| / | |

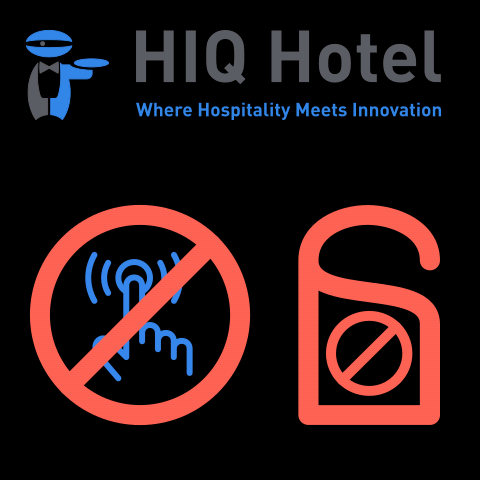

14.door-bell_denied
| CyBro → TGP | |
|---|---|
| page: | 14 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| / | |
20.room_idle
| CyBro → TGP | |
|---|---|
| page: | 20 |
| pp0: | tgp_language |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| event: | 20 |
| ep0: | 1 |
| ep1: | tgp_language |
| ep2: | / |

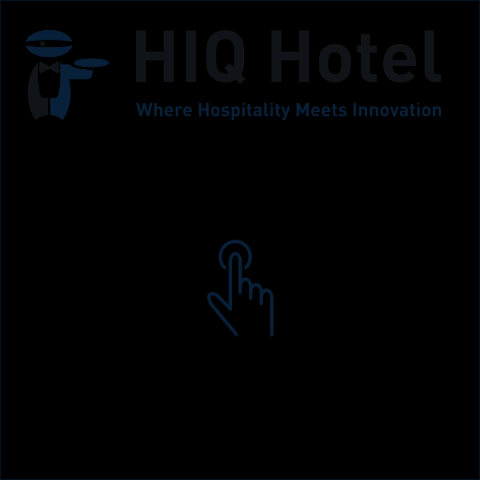

21.room_idle_night
| CyBro → TGP | |
|---|---|
| page: | 21 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| / | |

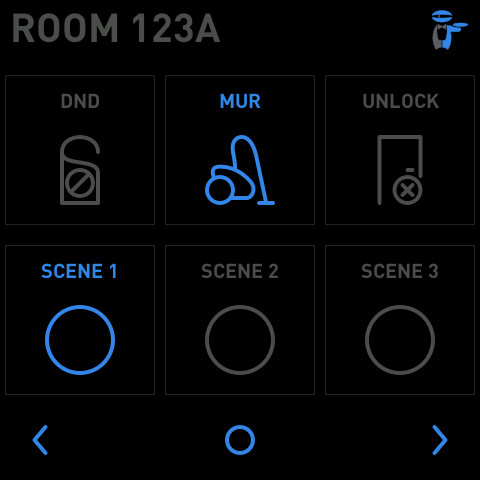

22.room_main
| CyBro → TGP | |
|---|---|
| page: | 22 |
| pp0 by0: | dnd |
| pp0 by1: | mur |
| pp1 by0: | door_lock |
| pp1 by1: | scene[0] |
| pp2 by0: | scene[1] |
| pp2 by1: | scene[1] |
| TGP → CyBro | |
| event: | 22 |
| ep0: | 1 |
| ep1: | dnd |
| ep2: | / |
| event: | 22 |
| ep0: | 2 |
| ep1: | mur |
| ep2: | / |
| event: | 22 |
| ep0: | 3 |
| ep1: | door_lock |
| ep2: | / |
| event: | 22 |
| ep0: | 4 |
| ep1: | scene[0] |
| ep2: | / |
| event: | 22 |
| ep0: | 5 |
| ep1: | scene[1] |
| ep2: | / |
| event: | 22 |
| ep0: | 6 |
| ep1: | scene[2] |
| ep2: | / |

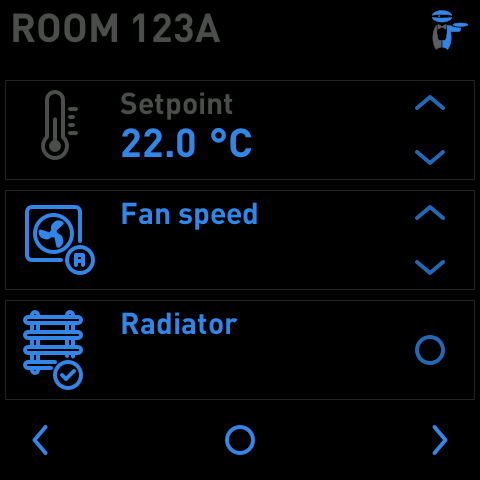

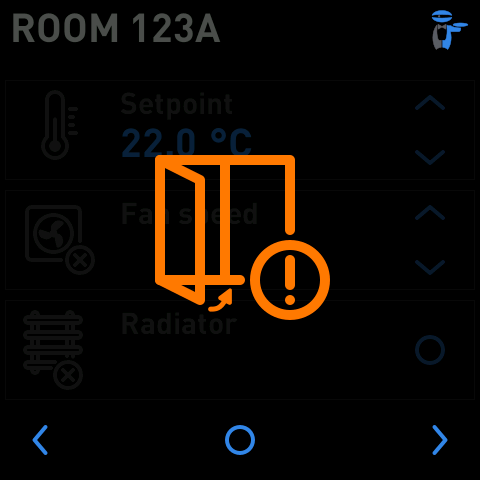

23.room_hvac
| CyBro → TGP | |
|---|---|
| page: | 23 |
| pp0: | hvac_setpoint |
| pp1 ni0: | hvac_fan_speed |
| pp1 ni1: | hvac_radiator |
| pp1 ni2: | hvac_opened |
| pp1 ni3: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| event: | 23 |
| ep0: | 1 |
| ep1: | hvac_setpoint |
| ep2: | / |
| event: | 23 |
| ep0: | 2 |
| ep1: | hvac_fan_speed |
| ep2: | / |
| event: | 23 |
| ep0: | 3 |
| ep1: | hvac_radiator |
| ep2: | / |

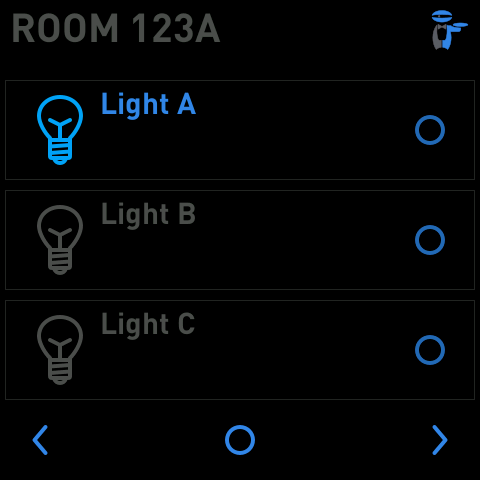

24.room_lights
| CyBro → TGP | |
|---|---|
| page: | 24 |
| pp0 ni0: | light[0] |
| pp0 ni1: | light[1] |
| pp0 ni2: | light[2] |
| pp0 ni3: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| event: | 24 |
| ep0: | 1 |
| ep1: | light[0] |
| ep2: | / |
| event: | 24 |
| ep0: | 2 |
| ep1: | light[1] |
| ep2: | / |
| event: | 24 |
| ep0: | 3 |
| ep1: | light[2] |
| ep2: | / |
25.room_dimmers_blinds
| CyBro → TGP | |
|---|---|
| page: | 25 |
| pp0 by0: | dimmer_qw[0] |
| pp0 by1: | dimmer_qw[1] |
| pp1 by0: | blinds_position |
| pp1 by1: | blinds_setpoint |
| pp2 ni0: | blinds_status |
| pp2 ni1: | 0 |
| pp2 ni2: | 0 |
| pp2 ni3: | 0 |
| TGP → CyBro | |
| event: | 25 |
| ep0: | 1 |
| ep1: | dimmer_qx[0] |
| ep2: | dimmer_qw[0] |
| event: | 25 |
| ep0: | 2 |
| ep1: | dimmer_qx[1] |
| ep2: | dimmer_qw[1] |
| event: | 25 |
| ep0: | 3 |
| ep1: | blinds_setpoint |
| ep2: | / |

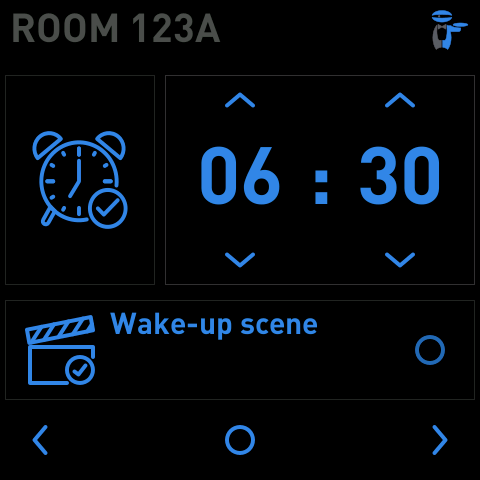

26.room_wake-up
| CyBro → TGP | |
|---|---|
| page: | 25 |
| pp0 ni0: | wakeup_status |
| pp0 ni1: | wakeup_scene_enabled |
| pp0 ni2: | 0 |
| pp0 ni3: | 0 |
| pp1 by0: | wakeup_time_hour |
| pp1 by1: | wakeup_time_min |
| pp2: | 0 |
| TGP → CyBro | |
| event: | 26 |
| ep0: | 1 |
| ep1: | wakeup_enabled |
| ep2: | / |
| event: | 26 |
| ep0: | 2 |
| ep1: | wakeup_time_hour |
| ep2: | wakeup_time_min |
| event: | 26 |
| ep0: | 3 |
| ep1: | wakeup_scene_enabled |
| ep2: | / |

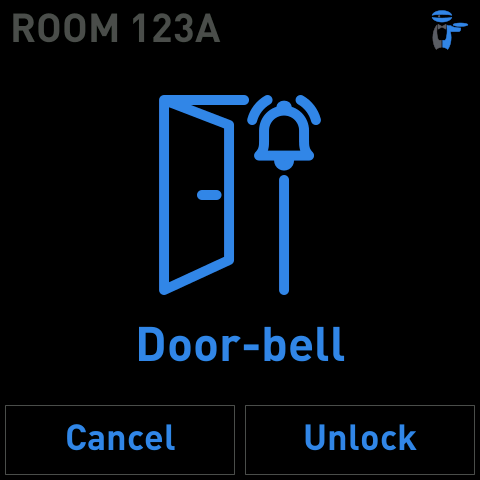

30.room_door-bell
| CyBro → TGP | |
|---|---|
| page: | 30 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| event: | 30 |
| ep0: | 1 |
| ep1: | door_lock |
| ep2: | / |

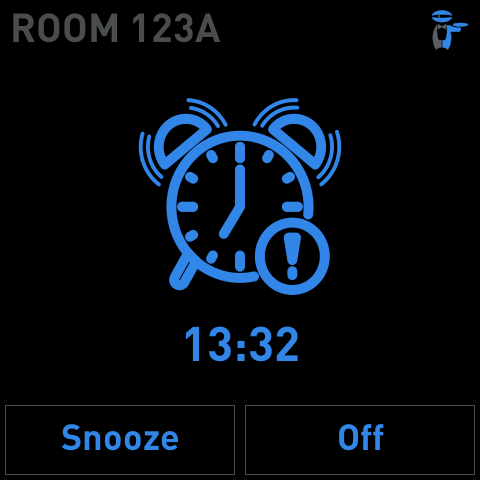

31.room_wake-up_alarm
| CyBro → TGP | |
|---|---|
| page: | 31 |
| pp0 ni0: | wakeup_status |
| pp0 ni1: | 0 |
| pp0 ni2: | 0 |
| pp0 ni2: | 0 |
| pp1 by0: | wakeup_time_hour |
| pp1 by1: | wakeup_time_min |
| pp2: | 0 |
| TGP → CyBro | |
| event: | 31 |
| ep0: | 1 |
| ep1: | wakeup_snooze_req |
| ep2: | / |
| event: | 31 |
| ep0: | 2 |
| ep1: | wakeup_enabled |
| ep2: | / |

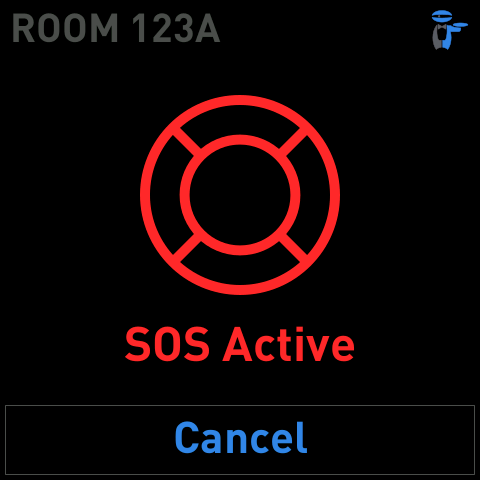

32.room_sos_alarm
| CyBro → TGP | |
|---|---|
| page: | 32 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| event: | 32 |
| ep0: | 1 |
| ep1: | sos |
| ep2: | / |

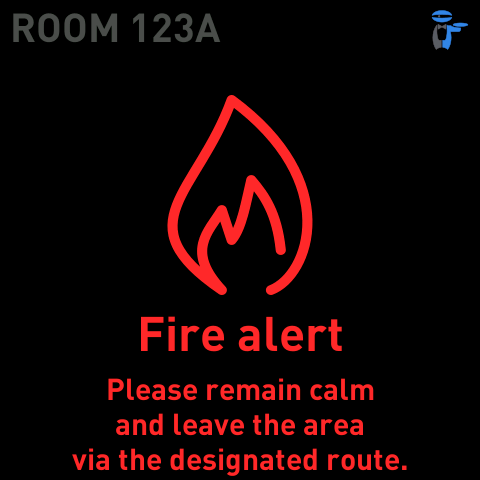

33.room_fire_alert
| CyBro → TGP | |
|---|---|
| page: | 33 |
| pp0: | 0 |
| pp1: | 0 |
| pp2: | 0 |
| TGP → CyBro | |
| / | |
