VisualTFT download page (Chinese): https://www.gz-dc.com/category/typeid/8

VisualTFT installation: visualtft_3.0.0.1249.rar

• Download,
• Unzip (Unrar)
• Install

• Download and unzip TGP template: tgp_template.zip
• In VisualTFT open # tgp_project.tftprj
• prepare screens and graphical elements
• edit main.lua to process communication between TGP and CyBro

• Connect CR-D1 A and B to USB to COM adapter

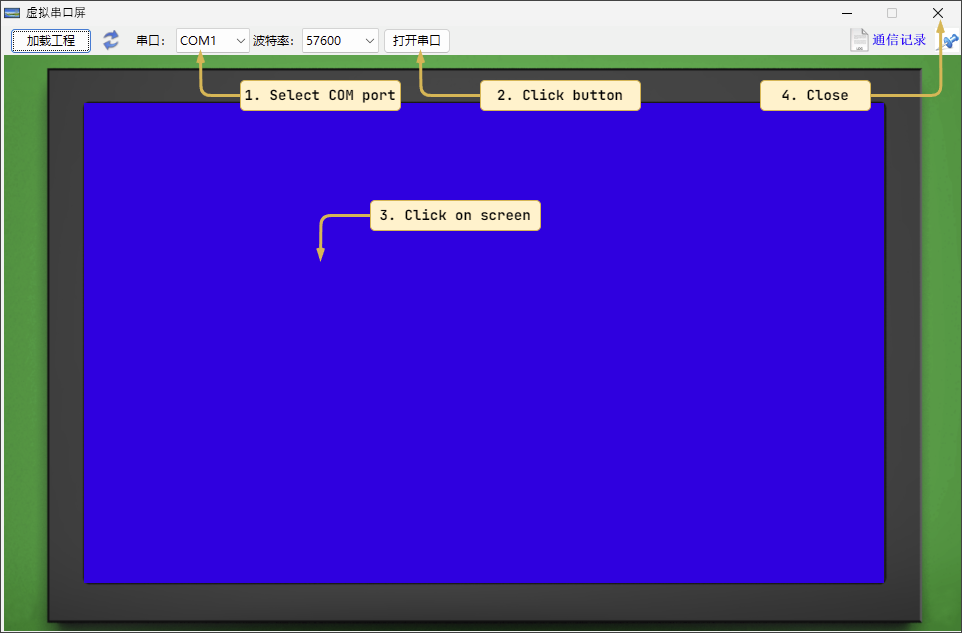

• In VisualTFT installation folder find and run TFTSimulator.exe
  •

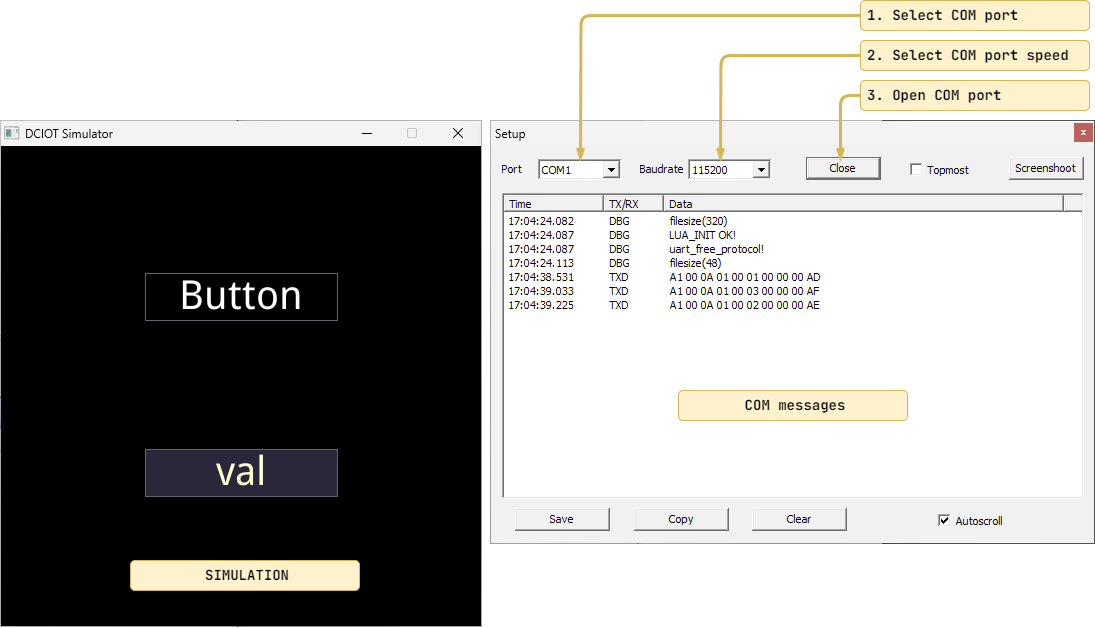

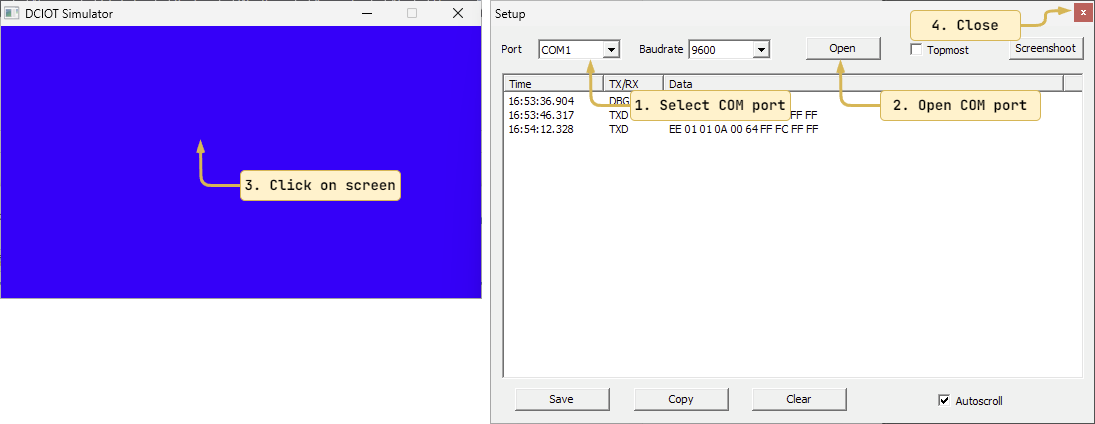

• In VisualTFT installation folder find and run DCIOT.exe
  •

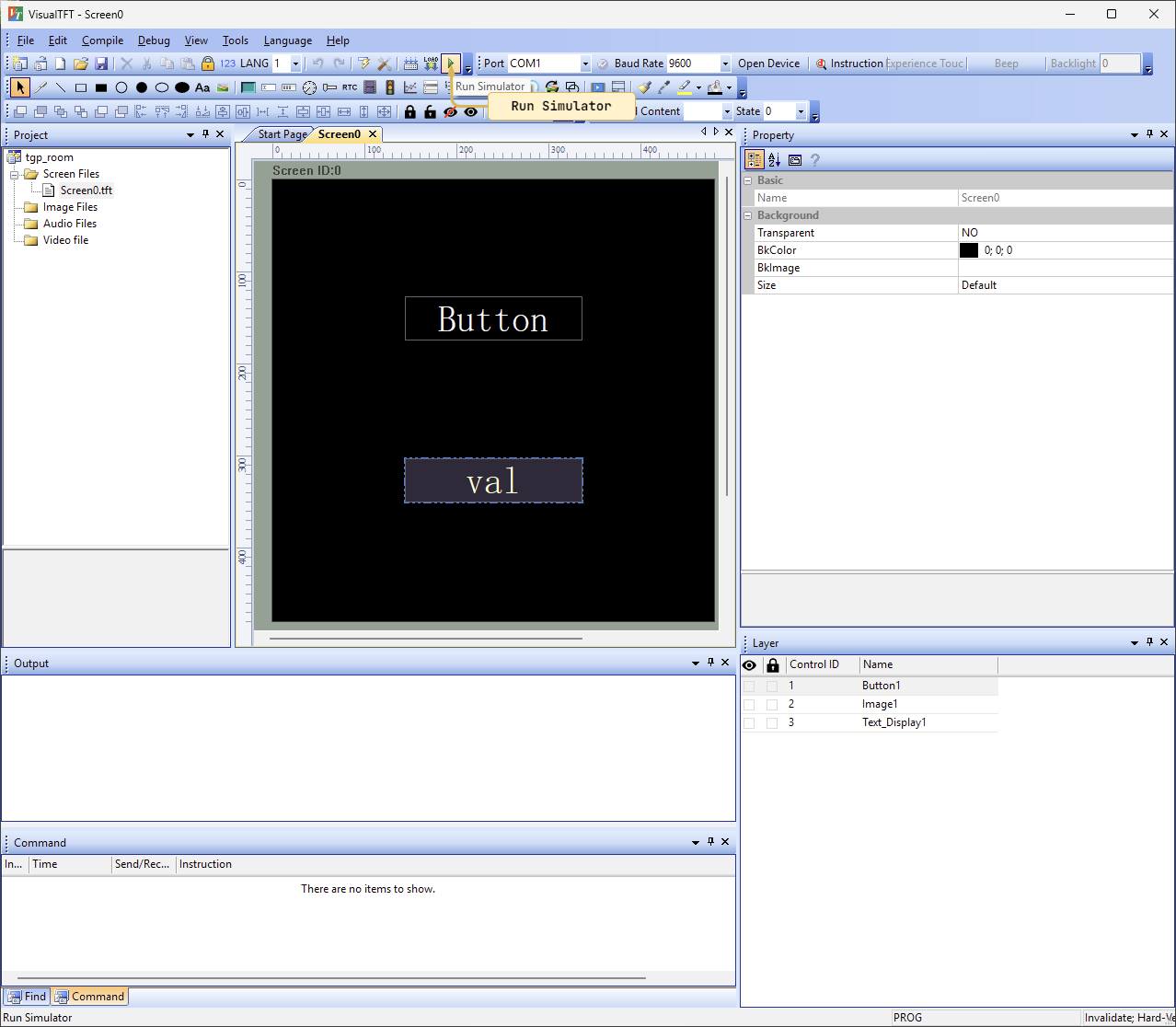

• Run simulator
  •
  •

•

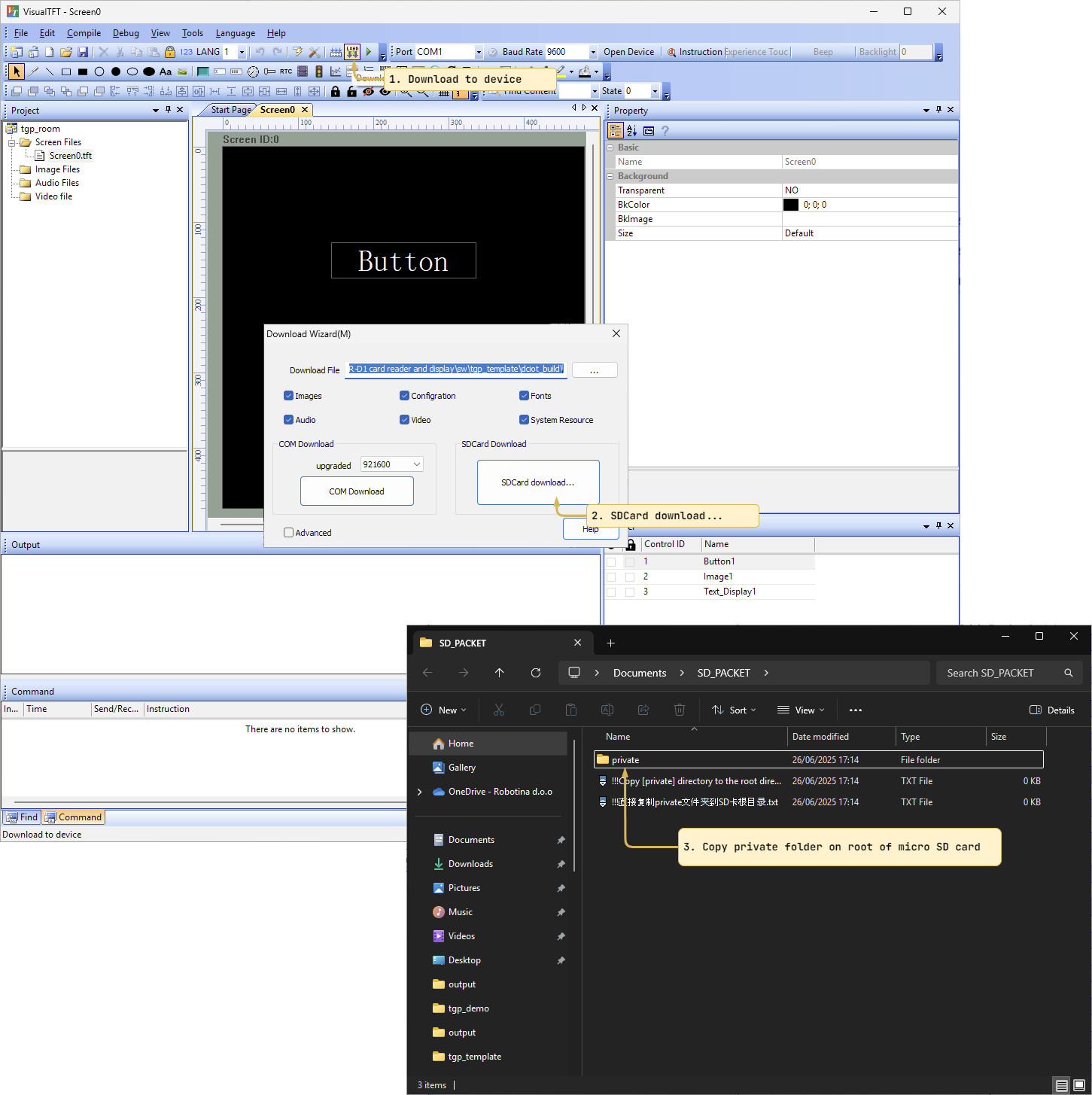

• Insert micro SD card into slot at bottom of TGP (SD card contacts versus front of display)
• Reset TGP with pin (pinhole on bottom right side)
