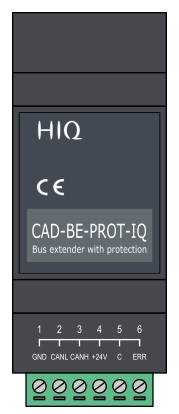

CAD-BE-PROT-IQ
RJ9 to wires bus adapter, surge protection
| Model number: | CAD-BE-PROT-IQ |
|---|---|
| Mounting: | DIN rail, 2M, 36 mm |
Applications
- Connecting field devices to cabinet ones
Features
- Detachable terminals
- Surge protection
- Bus extender

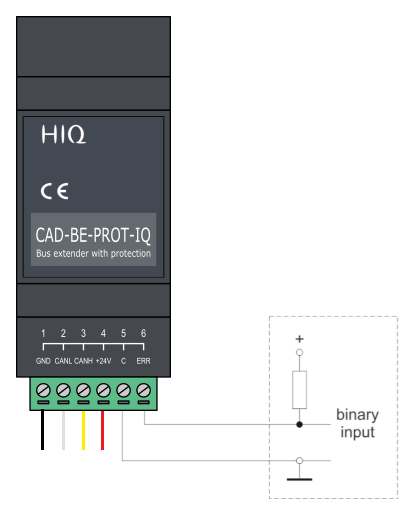

Terminals
| IEX2 BUS | +24V | IEX2 bus |
|---|---|---|
| CANH | ||
| CANL | ||
| GND | ||
| ERR | ||
| C |
