TGP-S
IEX-2 adapter
| Order code: | TGP-S |
|---|---|
| Mounting: | in-wall, in junction box behind TGP |
General description
TGP-S is a compact RS485 communication adapter for TGP 4-inch graphic panels with integrated external temperature sensor input.
Features
- Compact IEX-2 adapter for TGP graphic panels
- RS485 communication with the main controller
- Dedicated temperature sensor input
- Easy installation in standard flush-mount boxes
- Installation depth: only 15 mm (display alone) or 32 mm (with adapter)
- Compatible with TGP-4 and similar 4-inch graphic panels
Technical specification
| Digital inputs: | dry contact, internal pull-up 12V 2mA |
| Power supply: | 24V/20mA |
| Galvanic isolation | none |
| Operating temperature: | 0..50°C |
| Storage temperature: | -20..75°C |
| Relative humidity: | 0..95% n/c |
| Mounting: | flush box |
| Standards: | EN60730-1 |

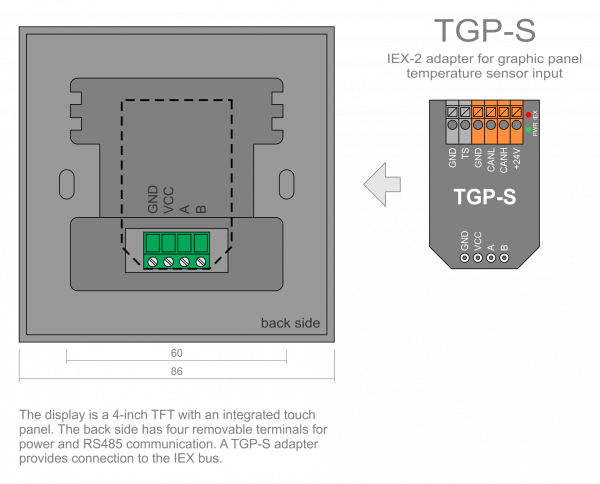

Terminals and Dimensions

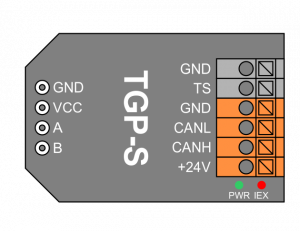

TGP-S adapter terminals:
- GND
- TS (temperature sensor input)
- CANL / A (IEX bus)
- CANH / B (IEX bus)
- VCC (power)

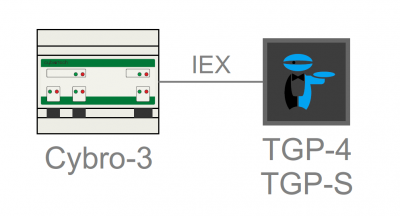

Connection
}
