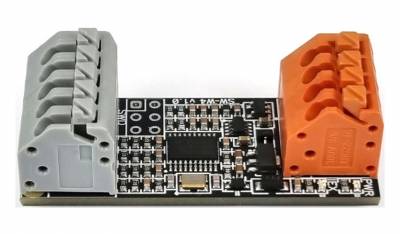

SW-W4
IEX-2 module
| Model number: | SW-W4 |
|---|---|
| Mounting: | in-wall, in junction box behind scene buttons |
General description
SW-W4 IEX-2 is a compact remote input module with 4 digital inputs. Any kind of push-button design can be used.
Features
- configurable button action:
- on/off
- dimmer push button (on/off and 0..100%)
Technical specification
| Digital inputs: | dry contact, internal pull-up 12V 2mA |
| Power supply: | 24V/35mA |
| Galvanic isolation | none |
| Operating temperature: | 0..50°C |
| Storage temperature: | -20..75°C |
| Relative humidity: | 0..95% n/c |
| Mounting: | fi 60, flush box |
| Standards: | EN60730-1 |

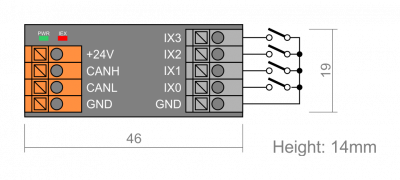

Terminals and Dimensions
