MW-T-OW-WH

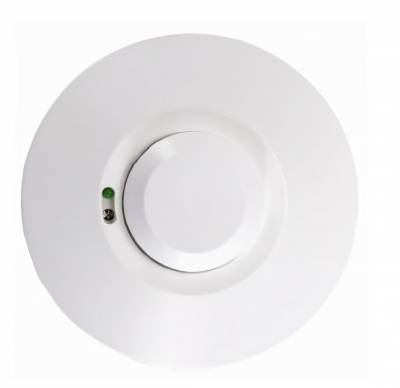

Recessed ceiling PIR sensor, relay output
| Model number: | MW-T-OW-WH |
|---|---|
| Old code: | MW-A18-B |
| Connects to: | digital input |
| Mounting: | wall or ceiling |
Applications
- Motion detector
- Ready light
- Lighting control
- Hotel GRMS
Features
- Aestetical look
- Easy mount
Installation instruction
- Do not install the detector at position which faces direct or reflected sunlight or near windows with direct car headlight.
- Ensure that there are no obstructions (plants, screens, furniture etc.) in the field of view that may cause incorrect cover/operation of the detector.
- Avoid locating the detector in areas that contain equipment that may change the environment temperature rapidly (i.e. above radiator or under the air-conditioner)
- Install the detector at proper height on a rigid surface. Do not install the detector on vibrating surface.
- PIR detector is more sensitive to the motions “across” the detection zones than “toward” or “away”.
Detection pattern
Range
Technical specifications
| Power supply | 24 VDC |
| Temperature | -20°C ~ 40°C |
| Humidity: | < 93% |
| Range: | 2–18 m (Adjustable) |
| Installing height: | Max. 3.5 m |
| Ambient frequency: | 5.8 GHz ±75 MHz (Adjustable) |
| Ambient light: | 10–2000 LUX |
| Detection angle: | 360° |
Terminals
| Common | - | -IN, -OUT |
|---|---|---|
| Signal | + | OUT + |
| Power supply | + | IN + |
