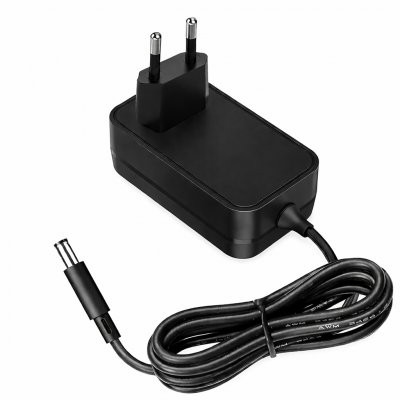

IOT-PS-PLUG-CPC
12V Power supply
| Model number: | IOT-PS-PLUG-CPC |
|---|---|
| Mounting: | AC wall adapter |
Technical specification
| Input voltage: | 100 – 240 VAC |
| Output voltage: | 12 VDC |
| Output current: | 5 A |
| Connector: | DC Connector Diameter: 5.5 x 2.1 x 10mm |
| Cable length: | 1.2 m (18 AWG) |
| Color: | Black |
| Mounting / Type: | Wall plug (desktop adapter) |
| Max Wattage: | 60W |
Highlights & Features
- Stable 12 V output to compensate for voltage drop on longer cables
- Supports full 5 A current.
- Wide input voltage range (works worldwide 100–240 V)
- Overload and short-circuit protection (built-in)
Usage Notes
- This item is a power adapter (transformer) of monochrome low voltage or RGB LED strip lights.
