IOT-PS-DIN-USB
5V Power supply(HDR-30-5)
| Model number: | IOT-PS-DIN-USB |
|---|---|
| Mounting: | DIN rail, 35mm |
| Dimensions: | 90mm x 54.5mm x 35mm |
Highlights & Features
- Ultra slim design with 35mm width
- No load power consumption <0.3W
- Isolation class II
- DC output voltage adjustable
- Over-voltage / Overload / Short circuit Protections
Safety standards
BS EN/EN61000-3-2, IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16
Technical specification
| Input voltage range | 230 V AC |
| Output voltage | 5 V DC |
| Output current | 3 A |
| Operating temperature | -30°C to +70°C |
| Rated power | 15W |
Terminals

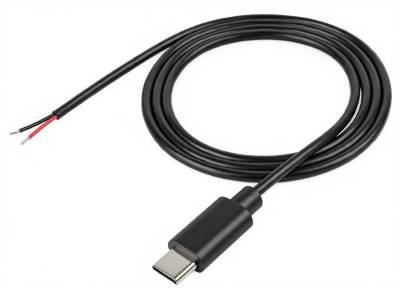

Accessory USB-C Cable (2-wire)
| Connector: | USB Type-C male on one end |
| Other end: | 2 open wires (red = +V / black = GND) |
| Max recommended current: | 3 A |
| Purpose: | Power-only connection (no data lines) |
Dimensions
Manufacturer Documentation
Official manufacturer manual (PDF): hdr-30-spec.pdf
