IOT-PS-DC-USB
DC(24V)/DC(5V) Converters
| Model number: | IOT-PS-DC-USB |
|---|---|
| Dimensions: | 63*27*14mm |
Highlights & Features
- 100% full power & stable current output
- 100% waterproof & anti-shock protection, Ultra compact size, light weight
- According CE/RoHS, IP68 design
- ABS flame retardant plastic shell, epoxy potting, Cooling by free air convection
Technical specification
| Input voltage range | 12/24 V DC |
| Output voltage | 5V DC |
| Output current | 3 A |
| Output Power | 15W |
| Operating temperature | -30°C to +80°C |
Terminal Connections
Mounting & Wiring Steps:
- Power off before wiring.
- Connect DC source to +(red)/-(black) inputs.
- Attach USB C cable to load(module).

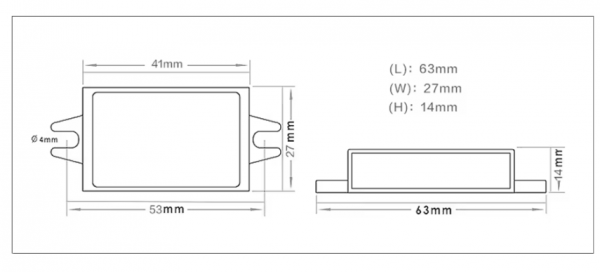

Dimensions
