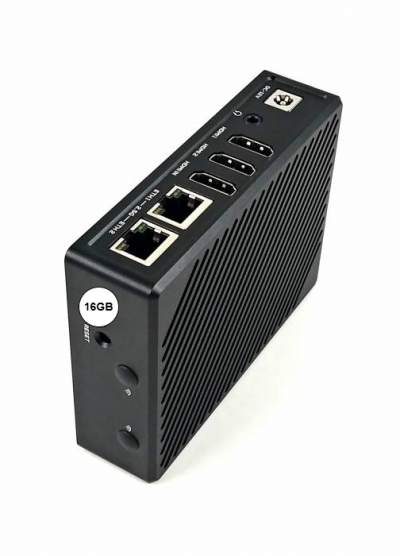

IOT-L3-MAX
Advanced EDGE device. Connects Cybro, MC Controller and RDC Charger to HIQ universe. Octo-core CPU (4x Cortex A76, 4x Cortex A55) , 16GB RAM, 2x Ethernet, 1 USB, *12V Power Supply
*Power supply for IOT linker is offered separately
| Order code with custom software | IOT-L3-MAX |
|---|---|
| Order code with S-RMS software | IOT-L3-MAX-SRMS |
| Order code with CybroWebScada software | IOT-L3-MAX-CWS |
| Order code with BM-GW software | 01_bm-gw |
| Mounting | DIN rail |
| Dimensions | 86 x 114 x 30 mm |
| Connection | ETH1 Port: uplink to HIQ Universe; ETH2 Port: connects to Cybro, MC Controller or RDC Charger |
| Order code AC Power Supply 230VAC/12VDC (Schuko Plug - CPC) | IOT-PS-PLUG-CPC |
| Order code DC Power Supply 24VDC/12VDC (HDR60-12) | IOT-PS-DIN-CPC |
- Robust and safe connection of HIQ and 4S systems to HIQ Universe cloud platform.
- Secure access and communication (TLS encryption)
- User data safety according to GDPR
- Secure remote access to HIQ controllers and chargers
Application
| Software Code | Description |
|---|---|
| BM-GW Software | Web UI for monitoring batteries in large UPS systems (data centers, commercial systems) |
| IOT-L3-MAX-SRMS | Web UI for room management system (hotels, offices etc.) API for integration with 4S and other cloud solutions. S-RMS software includes S-Access software as well. |
| IOT-L3-MAX-CWS | A general purpose web application for visualisation and control of projects automated with Cybro/MC controllers |
| Custom Software | Used in special cases when linkers IOT-L2-2 and IOT-L3-3 are not powerful enough |
Note: The device is available with or without software. The final price depends on the selected software package and required system configuration.
Technical specifications
| Power supply: | 12V DC (Barrel Connector 5.5mm x 2.1mm) |
| Storage: | 0GB/32GB/64GB/256GB eMMC, NVME M.2 2280 SSD up to 2500 MB/s |
| USB Host: | 1 x USB 3.0 Type A, 1 x USB-C: Full function USB Type-C |
| Network: | ePCIe 2.5Gbps Ethernet x2, PCle 2.1 x 1 and USB2.0 Host support for M.2 WiFi and Bluetooth Module |
| Working temp.: | 0℃ to 70℃ |
| 4G connection : | MiniPCIe modem card, SIM Card slot on board |
