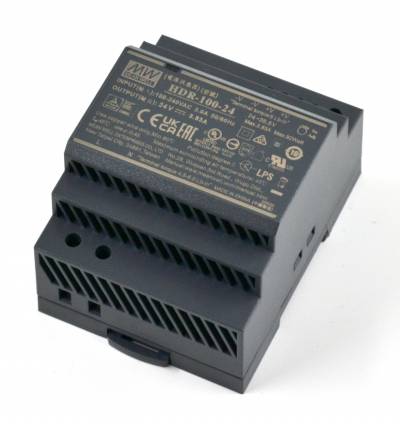

HDR-100-24
24V Power supply
| Model number: | HDR-100-24 |
|---|---|
| Mounting: | DIN rail, 35mm |
| Dimensions: | 90mm x 54.5mm x 52.5mm |
Highlights & Features
- Suitable for parallel operation without extra components
- Ultra slim design with 70mm width
- No load power consumption <0.3W
- Isolation class II
- DC output voltage adjustable
- Over-voltage / Overload / Short circuit Protections
Safety standards
BS EN/EN61000-3-2, IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16
Technical specification
| Input voltage range | 85 - 264 VAC |
| Output voltage | 24 VDC |
| Output current | 3.83 A |
| Operating temperature | -30°C to +70°C |

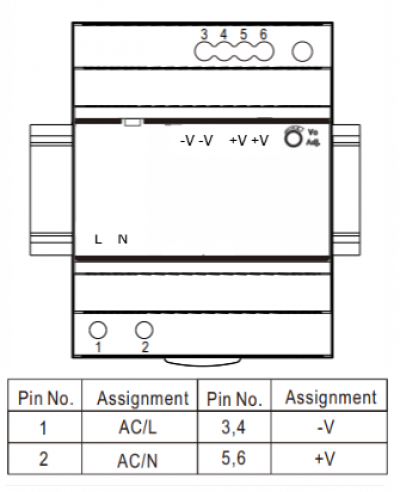

Terminals

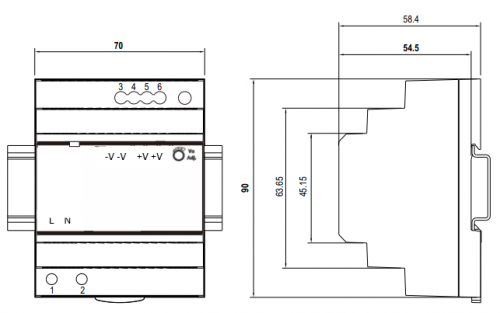

Dimensions
Manufacturer Documentation
Official manufacturer manual (PDF): mw-hdr10024.pdf
