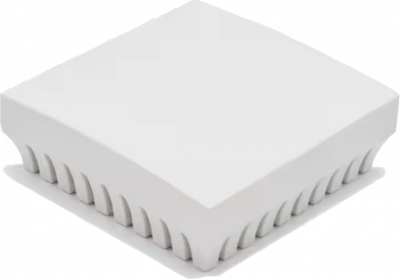

ES-W2-WH
Temperature sensor, White housing
| Order code: | ES-W2-WH |
|---|---|
| Housing: | plastic box, white |
| Dimensions: | 80x80x26mm |
| Mounting: | wall surface |
Technical specifications
| Temperature measurement: | Internal |
| Power supply: | 24V 10mA |
| Ingress protection: | IP20 |
| Operating temperature: | 0..+80°C |
| Storage temperature: | -20..75°C |

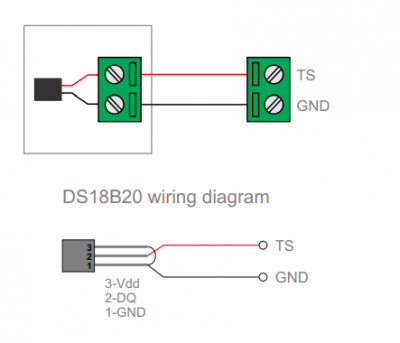

Terminals

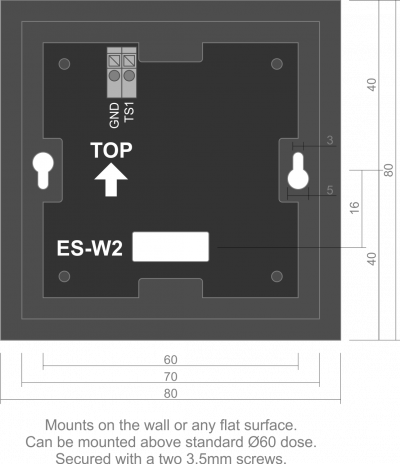

Dimensions, mounting
