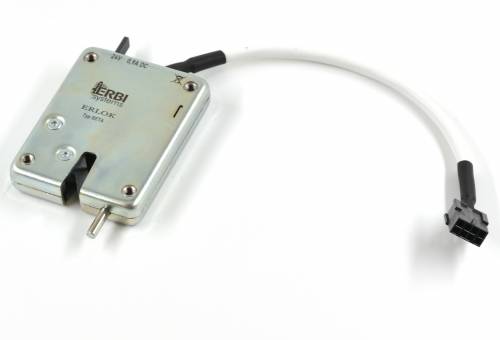

EL-C-MS
Electromechanical strike lock for cabinets with built in micro switches
| Model number: | EL-C-MS |
|---|
General description
The most compact electric strike without sacrificing any of the quality or safety offered by our other products. EL-C-MS is the perfect match for narrow aluminium, PVC or timber profiles.
Technical specifications
| Lock body dimensions | 73×57×14 mm |
| Lock body dimensions with ejecting sys. | 96×57×14 mm |
| Minimum force for forced opening | 1 500 N |
| Attaching the lock on the sidewall | 4×screw M4 |
| Path of ejecting system | 0-13 mm, diameter of rod 4 mm |
| Design of the lock | left/right |
| Emergency opening | YES |
Electromechanical data
| Solenoid 24 V DC, 0,9 A |
| multi pin connector on |
| cable max pressure for opening 40 N |
| Microswitch signalization: |
| 1. Switch locked lock & unlocked lock |
| 2. Switch closed door & open door |
Materials
| body of lock – galvanized metal sheet | steel posts with M4 continuous thread |
| latch – pressure-hardened polyamide | ejecting system – metal |
Dimensions
Terminals
Electric Lock (Output Connector):
- Connector on the electric lock side: Molex Micro-Fit 3.0
- Part number: Molex 43020-0801
Cable Extension (for connection / extension):
- Receptacle housing (female): Molex 43025-0800
- Fully compatible with 43020-0801 (direct mating).
- Contacts (female crimp terminals / sockets): Molex 43030-0007

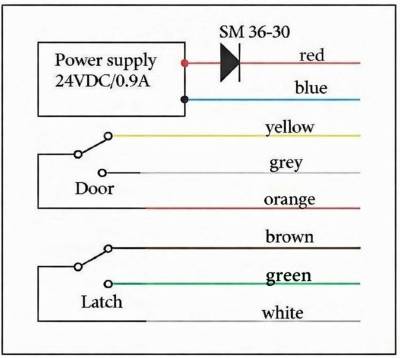

| Color | Function |
|---|---|
| red | Power supply + 24VDC/0,9A DC |
| blue | power supply - |
| yellow | door open |
| grey | door closed |
| orange | common for door |
| brown | latch open |
| green | latch closed |
| white | common for latch |

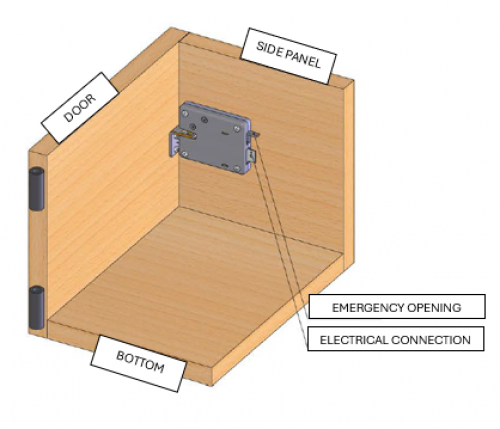

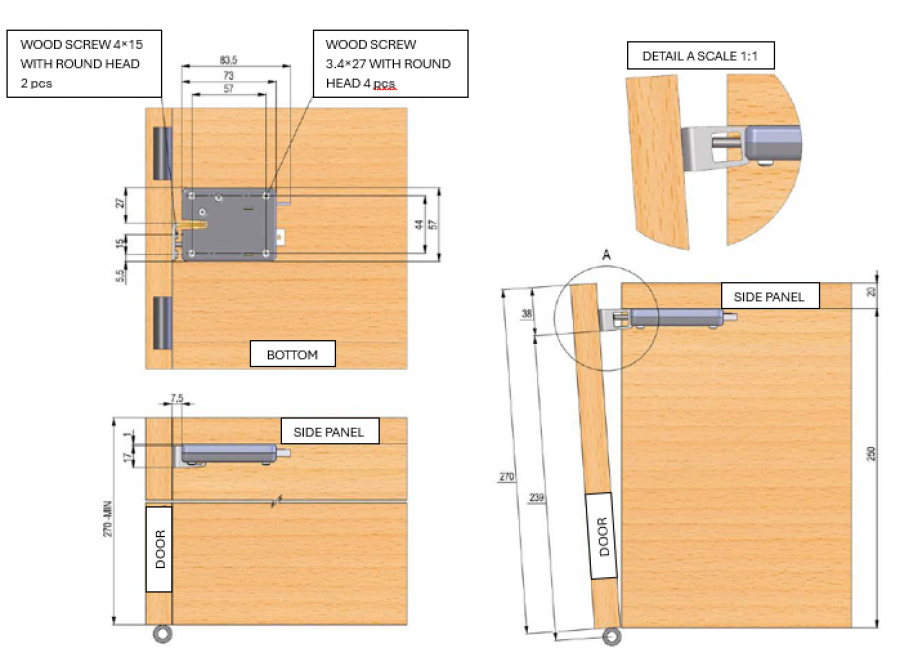

Installation instructions – right door side
