DK-HH-01
HIQ Hospitality Demo Case
| Order code: | DK-HH-01 | |
|---|---|---|
| Description: | HIQ Hospitality Demo Case | |

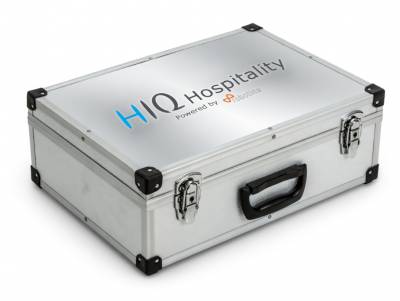

HIQ Hospitality Demo Case is a portable demonstration kit designed for showcasing the HIQ SRMS (Smart Room Management System) – a complete hotel room automation solution. It allows sales teams, engineers, and partners to perform live demonstrations of all smart room functionalities in a compact and professional aluminum transport case. Ideal for trade shows, client meetings, hotel presentations, and training sessions.
Purpose
- Live demonstration of the full HIQ hotel room automation ecosystem
- Showcasing seamless hardware and software integration (including SRMS license)
- Training for installers and hotel staff
- Professional sales presentations for hotels, apartments, and boutique properties
Components
| Component | Description |
|---|---|
| Demo Case | Aluminum transport case for demonstration setup |
| MC-24-H1 | Cybro / Cybrotech PLC for hotel room automation |
| IOT-L2-2-SRMS | Communication module for system integration, linker |
| IOT-PS-DC-USB | IoT Linker adapter – 24V DC (Adapter, USB-C) |
| HDR-30-24 | 24 V DC / 1.5 A power supply |
| CR-D1-B | RFID card reader for hotel room access |
| TGP-4A-01-IQ | Touch Glass Panel for room control |
| EL-B | Demonstration hotel door lock |
| EM CARD-02 | RFID card Mifare Classic 13.56 MHz |
| MOS-04-VS-WH | Door/window opening sensor |
| ES-W2-WH | Temperature sensor |
| IR-R-OW-WH | Ceiling surface mounted PIR sensor |
| WiFi module to ethernet | WiFi module |
| LED strip | 1m 24 VDC LED strip |
| DIN Rail | DIN rail 0.5 m |
| Circuit Breaker | Miniature circuit breaker for protection 230V AC |
| Terminal Blocks 230V | Power distribution terminals 230V |
| Terminal Blocks 24V | Power distribution terminals 24V |
| 230V Power Cable | Main power supply cable |
| Cable for displays | 0.5m 10x1mm cable for displays |
| Wire and connectors | Wire 0.75 mm² to connect modules |
| Ethernet Cable | LAN cable for programming and connection |
| Labels & Markings | Room / Corridor / HIQ branding labels |
| Plexiglass white 3mm | White 3mm plexiglass (1m²) |
| SRMS licence | Demo SRMS license |
Demonstrable Key Features
- Room Access Control – RFID card reader + demonstration door lock + MIFARE cards
- Room Control Panel – 4-inch Touch Glass Panel (TGP-4A-01-IQ)
- Climate Control – Temperature sensor with automatic HVAC control
- Lighting Control – LED strip with automatic activation via PIR sensor
- Sensors – Door/window contact sensor + presence detection (PIR)
- System Integration – Cybro PLC + IOT-L2-2-SRMS communication module
- Remote Monitoring & Control – via HIQ SRMS platform
- Electrical Safety – Proper 230V / 24V distribution with circuit breaker protection
Technical Specifications
- Power Input: 230V AC → 24V DC internal distribution
- Connectivity: Ethernet, WiFi, RS485, USB-C
- Branding: All components professionally labeled with HIQ Hospitality branding
- Portability: Compact aluminum case – easy to carry for on-site demonstrations
Usage Scenarios
- Trade fairs and exhibitions
- On-site hotel presentations
- Installer and partner training sessions
- Sales meetings with potential clients
