CAD-232-A3-IQ

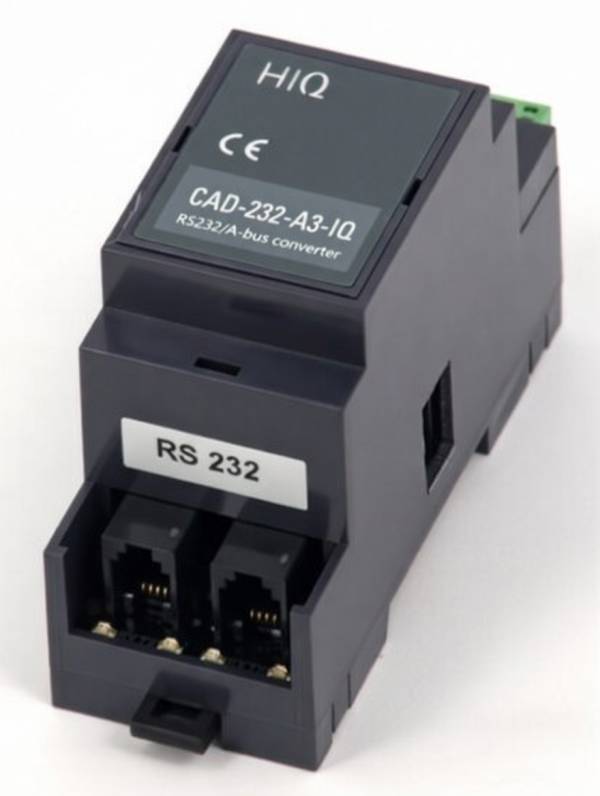

BTMS Communication converter
| Order code: | CAD-232-A3-IQ |
|---|---|
| Mounting: | DIN rail, 2M, 36 mm |
| Dimensions: | 36x107x58mm |
Highlights & Features
- RS-232 to RS-485 converter, RJ9 to terminals
- Galvanic isolation: power supply/232 to 485
Technical specification
| Baud rate | 19200 (2400..115200) |
| Galvanic isolation | 1.5kV, 24V/232 to 485 |
| RS485 termination | 120 Ohm, 1V offset |
| RS485 transmit enable | automatic |
| Power supply | 24V (18..28V), 50mA |
| Operating conditions | 0..50°C, 0..85% rh non-condensing |
| Mounting | DIN rail (35mm) |
| Degree of protection | IP20 |
| Dimensions | 36x107x58mm |
| Weight | 65g |
| Level of ambient pollution | 2 |
| Standards | EN 60730-1 |
Bus Connection Cable
- The product includes a 2.5 cm RJ9-to-RJ9 bus cable (Order code: CAD-P0) for connection to controllers, allowing the units to be linked together.
- Longer cable versions are available under order codes CAD-Px.
