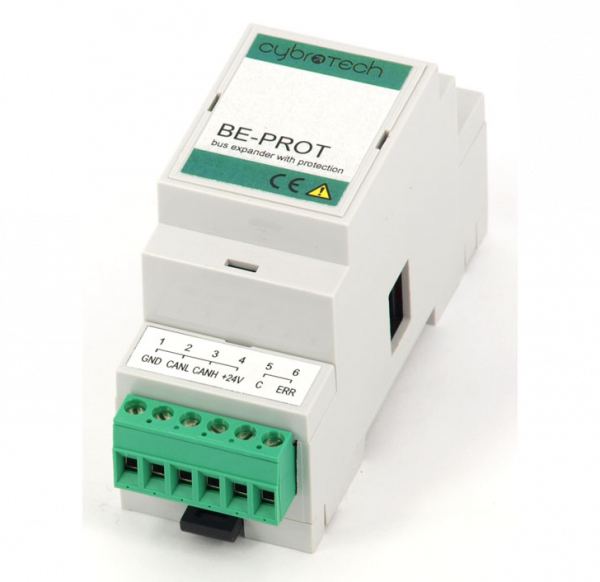

BE-PROT
RJ9 to wires bus adapter, surge protection
| Model number: | BE-PROT |
|---|---|
| Mounting: | DIN rail, 2M, 36 mm |
Applications
- Connecting field devices to cabinet ones
Features
- Detachable terminals
- Surge protection
- Bus extender
Technical specification
| Surge protection | 1.5kW at 10/1000us |
| Error output | 24V 10mA opto isolated |
| Dimensions | 36x107x58mm |
| Weight | 70g |

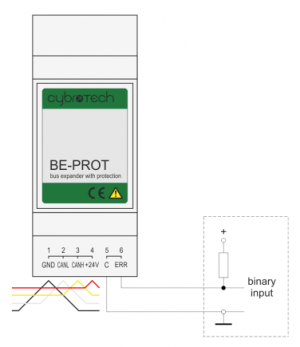

Terminals
| IEX2 BUS | +24V | IEX2 bus |
|---|---|---|
| CANH | ||
| CANL | ||
| GND | ||
| ERR | ||
| C |

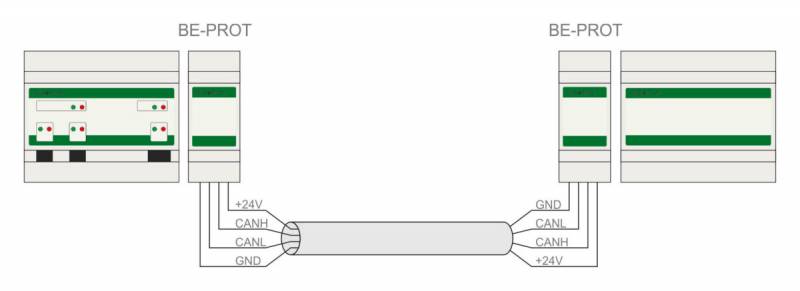

Connection
