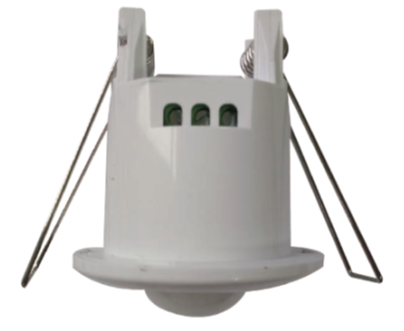

IR-C6-B

Recessed ceiling PIR sensor, relay output

• Small visible surface
• Aestetical look
• Easy mount
• Water resistant (front side)

A passive infrared detector with sleek and compact housing.

• Do not install the detector at position which faces direct or reflected sunlight or near windows with direct car headlight.

• Ensure that there are no obstructions (plants, screens, furniture etc.) in the field of view that may cause incorrect cover/operation of the detector.

• Avoid locating the detector in areas that contain equipment that may change the environment temperature rapidly (i.e. above radiator or under the air-conditioner)

• Install the detector at proper height on a rigid surface. Do not install the detector on vibrating surface.

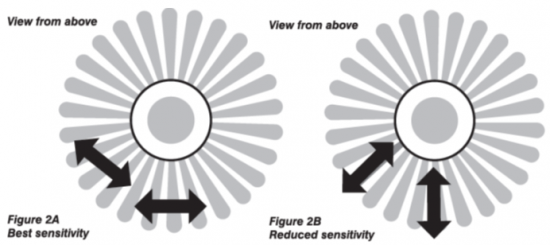

• PIR detector is more sensitive to the motions “across” the detection zones than “toward” or “away”.

Turn the light level and time control to the desired position so that the settings match your preferences
