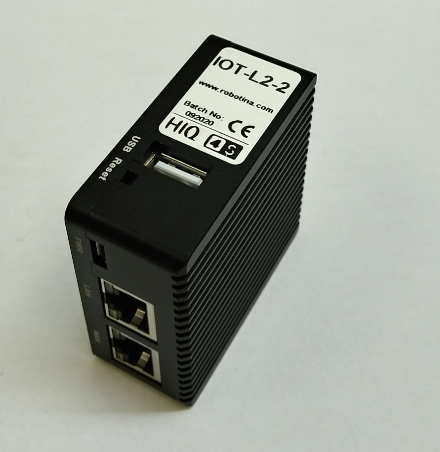

IOT Linker 2 Ethernet Port
Advanced EDGE device. Connects Cybro, MC and RDC Charger to HIQ universe
| Order code without Power Supply | IOT-L2-2 |
|---|---|
| Order code with AC Power Supply 230VAC/5VDC | IOT-L2-2-AC |
| Order code with DC Power Supply 24VDC/5VDC | IOT-L2-2-DC |
| License for specific IOT linker software | IOT-C2-xx; xx-version of the software |
| 4G LTE USB modem for IOT linker | IOT-L2-W |
| Mounting: | DIN rail, (Optional wall) |
| Dimensions: | 60 x 61 x 26 mm |
| Connection: | LAN Port: connects to Cybro, MC or Robotina Charger; WAN Port: uplink to HIQ Universe |
- Robust and safe connection of HIQ and 4S systems to HIQ Universe cloud platform.
- Secure access and communication (TLS encryption)
- Local data buffer, no data loss
- User data safety according to GDPR
- Secure remote access to HIQ controllers and chargers
Technical specifications
| Power supply: | USB-C, 5V DC |
| Storage: | MicroSD x1 for external storage up to 128GB |
| USB Host: | 1x 2.0 Type-A |
| Network: | 2x 10/100/1000M Ethernet |
| Working temp.: | 0℃ to 80℃ |
| 4G connection : | USB |
| Software : | IOT linker system software is sold separately on MicroSD card |

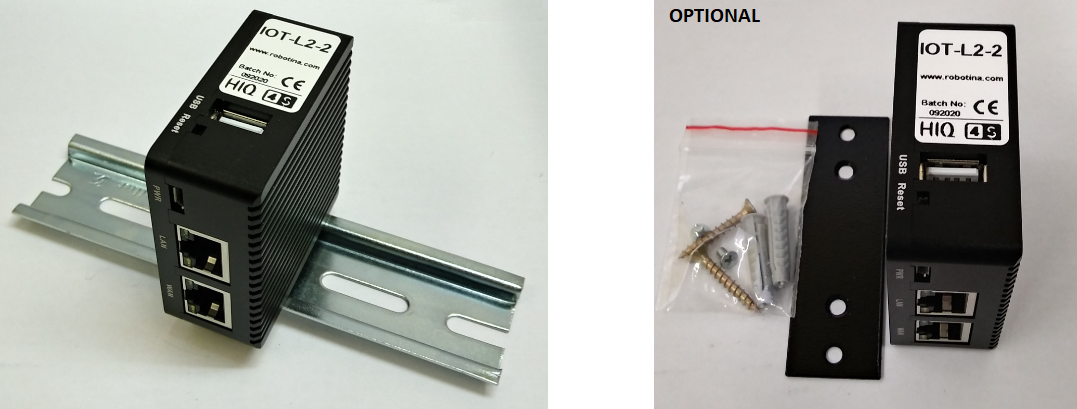

Mounting
DIN Rail, Optional Wall
