BM-LC
BTMS IO expansion module
| Model number: | BM-LC |
|---|---|
| Mounting: | DIN rail, 6M, 106 mm |
| Dimensions: | 106×108×58 mm |
Applications
- Expansion for MC with additional digital inputs and outputs
- Additional sensors (leak, gas) can be connected to inputs
- Relay outputs can disconnect faulty string or turn on additional signaling in the event of an error on the string
Technical specification
| Output power per relay | |
| - incandescent / halogen 230V | 1000 W |
| - halogen 12V with transformer | 500 W |
| - LED with transformer or compact | 500 W |
| Total power for all outputs together: | 4000 W |
| Maximum switching voltage | 250Vac |
| Dielectric strength output to output | 400Vac |
| Maximum input cable length: | 50 m |
| Power supply: | 24 V / max. 120 mA |
| Ingress protection: | IP20 |
| Operating temperature: | 0..45 °C |
| Storage temperature: | -20..75 °C |
| Relative humidity: | 0..95 % n/c |
| Weight: | 280g |

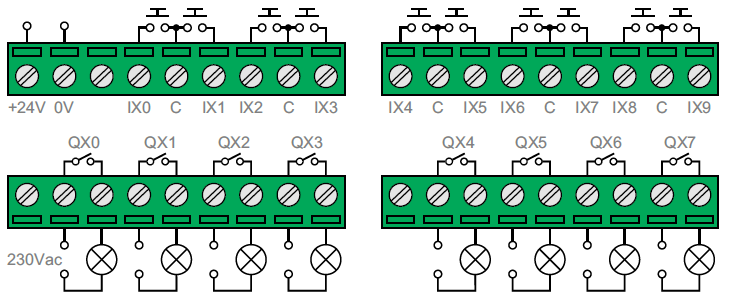

Terminals
