BM-SS
BTMS String master
| Order code: | BM-SS-A1 |
|---|---|
| Mounting: | DIN rail, 85 mm |
| Dimensions: | 85 × 120 × 39 mm |
Highlights & Features
- Real-time monitoring of string voltage, charge-discharge current, charge-discharge state and string SOC.
- Monitor the voltage, impedance, temperature, SOC and SOH of each battery with BM-CS cell sensors and the specially designed isolated power bus.
- Advanced one-step auto-sensing for individual address. No more manual intervention and setup needed, reducing workload and setup errors.
- Advanced measurement algorithm, no need to discharge large current and measurement can be lossless.
- Balancing function: Keep voltage balanced during the floating charge process of battery pack, keeping the individual battery in the best state, extending backup time and life span of battery pack.
- Communication is based on power-isolated RS485. Secure and stable.
- Quickly locate the alarmed or faulty battery pack in machine room.
- External split-core Hall Sensor, measuring charge-discharge current in different ranges.
- Isolated voltage in communication interface: AC 3750V
- Supports up to 120 batteries (BM-CS)
Technical specification
| Power supply | Nominal | 24 VDC |
|---|---|---|
| Range | 12 .. 36 VDC | |
| Power loss | ≤ 2W | |
| Operating temperature | Standard | 0 .. 45 °C |
| Limit | -10 .. 55 °C | |
| Storage temperature | -40 .. 70 °C | |
| Working humidity | 5 .. 95 %RH, non-condensing | |
| Dimensions: | Width | 85 mm |
| Height | 105 mm | |
| Height max | 120 mm | |
| Depth | 39 mm | |
| Voltage measurements | Range | 20 .. 800 VDC |
| Accuracy | ± 0.5 % | |
| Resolution | 0.01 VDC | |
| Current measurements | Range | -1000 .. 1000 A |
| Accuracy | ± 2 % | |
| Resolution | 0.01 ADC | |
LED indicator
| Normal operation | Green LED |
|---|---|
| Alarm | Red LED |

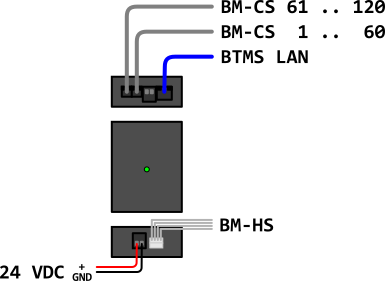

Wiring
