BM-GW

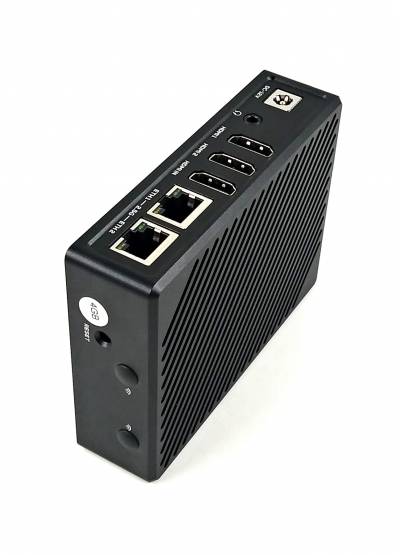

BTMS IOT Gateway
| Order code: | BM-GW-01 | NO GSM modem |
|---|---|---|
| BM-GW-02 | With GSM modem | |
| Mounting: | DIN rail | |
| Dimensions: | 86 x 114 x 30 mm | |
Highlights & Features
- Local WEB UI
- real-time data display
- data logging
- history data display (tables, time-plots)
- history and real-time data download
- e-mail, SMS alarming
- Robust and safe connection of BTMS system to BTMS cloud platform.
- Secure access and communication (TLS encryption)
- Local data buffer, no data loss
- User data safety according to GDPR
- Secure remote access to BM-C controllers
System specifications
- Up to:
- 32strings arbitrarily distributed on several UPSs
- 120 batteries / string (3840 batteries / system)
- Temperature and humidity sensor for each string
- Logging data for one year by automatically deleting old data
- Send e-mail and SMS alarms directly from the device
HW Technical specification
| Power supply: | 12 VDC 2A max (Barrel Connector 5.5mm x 2.1mm) | |
|---|---|---|
| Construction: | Extruded aluminum IP30 | |
| CPU: | Rockchip RK3588 Quad-core ARM Cortex-A76(up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz) | |
| System Memory: | 4 GB LPDDR4X at 2133MHz | |
| Storage: | eMMC Flash 32GB, 256 GB SSD | |
| Ethernet: | 2 x RJ-45 10/100/1000/2500 Mbps | |
| LTE: | Cat 4 | |
| Working temp.: | 0°C to +70°C | |
| Humidity: | 0% to 95% | |
| Vibration Endurance: | 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating) | |

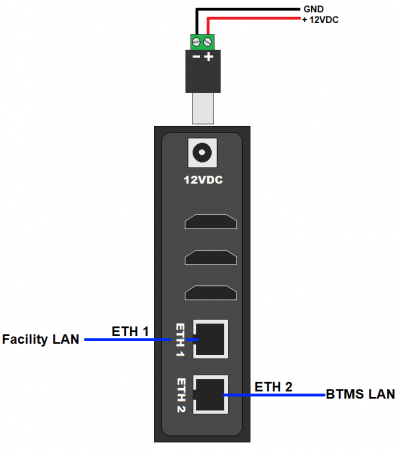

Wiring
